Objective

Proper preparation of your installation space is critical to ensure your sauna functions properly, lasts a long time, and remains structurally sound. This guide outlines the key site preparation requirements to avoid installation issues and maintain the sauna’s durability.

⚠️ Important: Failure to follow these guidelines can lead to assembly gaps, wood warping, or structural shifting over time, which will not be covered under warranty.

Contents of Article

Click on a section below to jump to the relevant information:

• Sauna Dimensions
• Level & Stable Surface Requirements
• Recommended Foundation Types
• Surfaces to Avoid

Sauna Dimensions

Before setting up your sauna, ensure you have enough space for installation and proper ventilation. Below are the external dimensions for each sauna model:

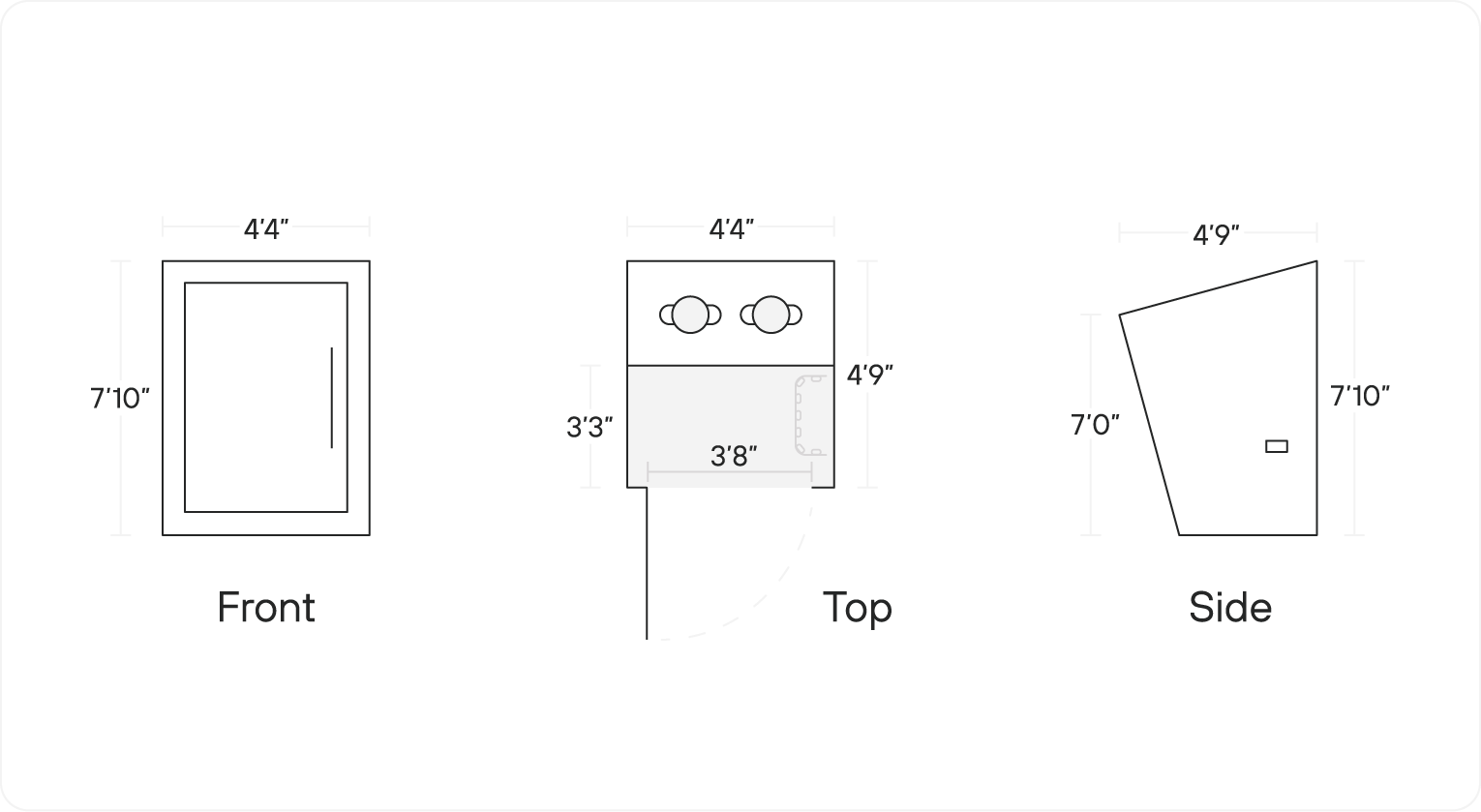

Sauna Mini

• Height: 7'10" (94 inches)
• Width: 4'4" (52 inches)
• Depth: 4'9" (57 inches)
• Capacity: Seats 2 people on the top bench

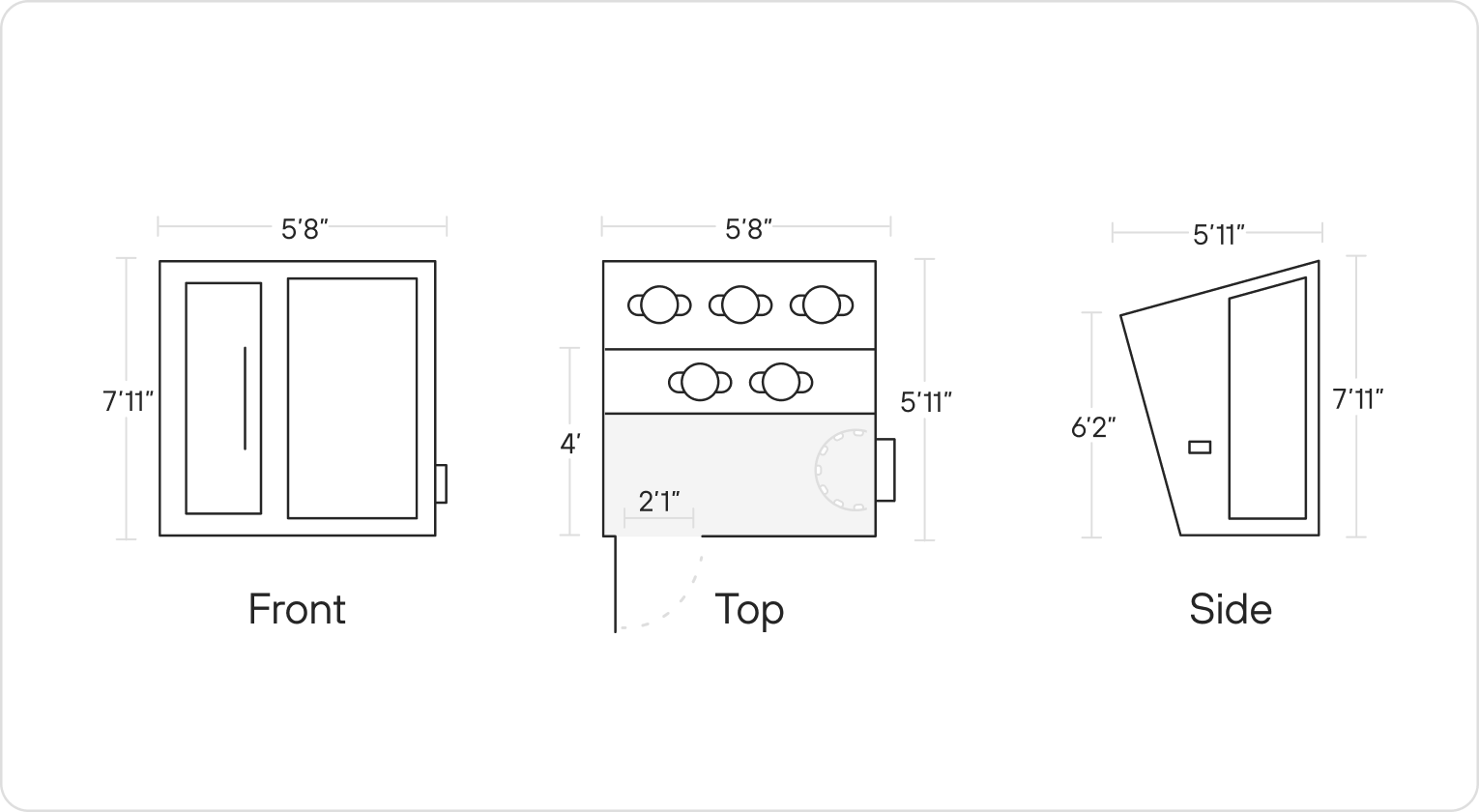

Standard Sauna

• Height: 7'11" (95 inches)
• Width: 5'8" (68 inches)
• Depth: 5'11" (71 inches)
• Capacity:
  • Top Bench: Seats up to 3 people
  • Bottom Bench: Seats up to 2 people

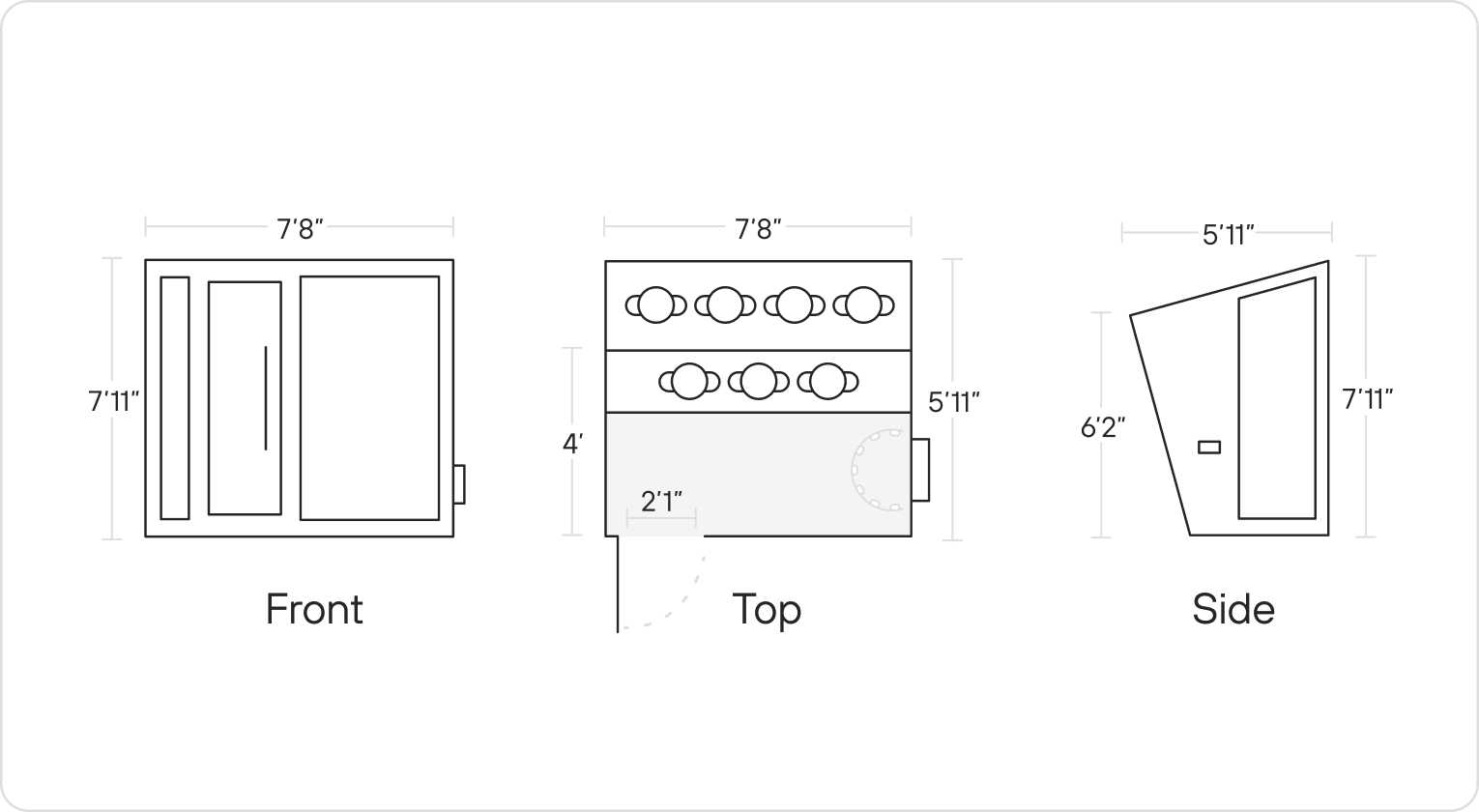

XL Sauna

• Height: 7'11" (95 inches)
• Width: 7'8" (92 inches)
• Depth: 5'11" (71 inches)
• Capacity:
  • Top Bench: Seats up to 4 people
  • Bottom Bench: Seats up to 3 people

📌 Note: These dimensions reflect the external measurements of each sauna model. When preparing your space, account for additional clearance as recommended in the installation guidelines.

Level & Stable Surface Requirements

✅ Your sauna must be assembled on a level, stable surface to ensure proper fit and long-term durability.

• The surface must be completely level to prevent gaps in the structure.
• An unlevel surface can cause:
  • Poor insulation and heat loss
  • Strain on the wood panels, leading to bowing and warping
  • Doors and panels not aligning properly

⚠️ Weight Capacity Requirement: The surface must be able to support up to 1,400 lbs (635 kg). If the foundation shifts or settles over time, it can compromise the sauna’s structure.

❌ Warranty Void Notice: Structural damage caused by an unlevel or unstable surface is not covered under warranty. Ensure proper site preparation before assembly.

Recommended Foundation Types

For long-term stability and durability, install your sauna on one of the following solid foundations:

Concrete Foundation

• A concrete pad at least 4 inches thick provides a strong, level surface.
• Ideal for permanent outdoor installations.

Wood Foundation

• A deck-style wooden platform made of treated lumber ensures stability.
• Must be reinforced to hold at least 1,400 lbs.

⚠️ Before placing your sauna, confirm that the foundation is completely level and stable to prevent long-term issues.

Surfaces to Avoid

The following surfaces are not suitable for sauna installation:

Grass, Dirt, or Loose Gravel

• These surfaces will shift and settle over time, leading to an uneven sauna structure.

Loose Pavers or Bricks

• Individual pavers may move under weight, making the sauna unstable.

Surfaces Prone to Erosion or Flooding

• Areas where water pooling or soil shifting occurs can damage the wood and compromise stability.

⚠️ If your surface is not suitable, install a proper foundation before assembling the sauna.
