Testing the Sauna Without the LED Wires Connected

Objective

This step-by-step guide will walk you through testing your sauna with the LED wires unplugged from the HUUM Main Module.

This test helps determine whether the LED system is causing the house breaker to trip. A breaker trip could be due to:

• A short in the LED wiring
• The customer using a GFCI breaker, which may not be compatible

By testing the sauna without the LED connected, we can identify if the LED is the source of the issue.

Tools Required

• Philips screwdriver
• T25 Bit (Mini Model only)
• Flathead screwdriver

Step-by-Step Instructions

1. Power Down the Sauna

• Unplug the sauna power cord from the power receptacle.

⚠️ Important: Never attempt to modify wiring while the sauna is plugged in. Ensure the power cord is fully unplugged before proceeding.

2. Remove the Electrical Box Cover

XL & Standard Models:

• Use a Philips screwdriver to remove the cover mounted on the outside of the heater panel.

Mini Model:

• Use a T25 Bit to remove the cover mounted inside the heater panel under the footrest.
•

3. Remove the HUUM Main Module Cover

• Use a Philips screwdriver to remove the HUUM Main Module cover for all models.

4. Locate & Disconnect the LED Wires

1. Inside the HUUM Main Module, locate the LED wires connected to the terminals.

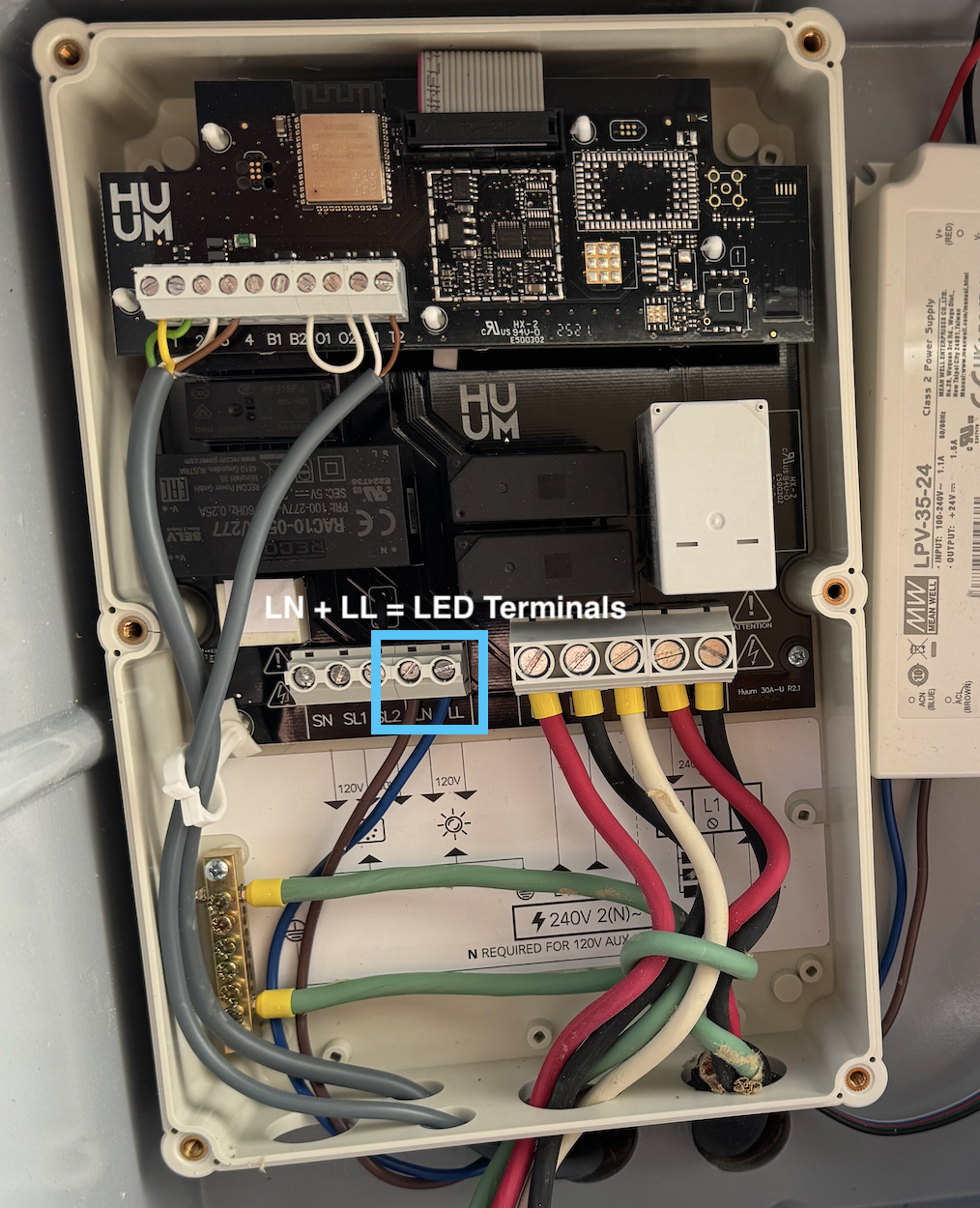

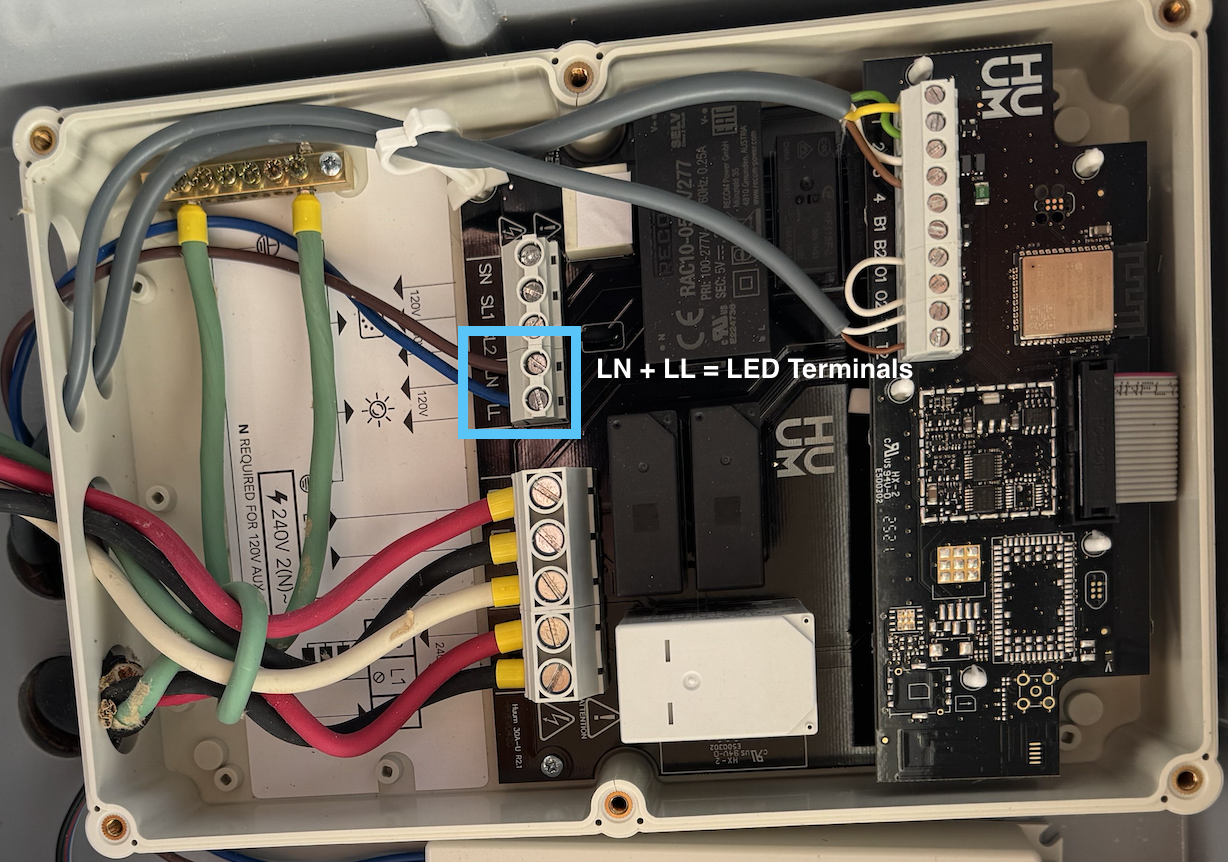

   • XL/ ST Models	Mini

2. Using a flathead screwdriver, loosen the terminal screws securing the LED wires.
3. Carefully remove the LED wires from the terminals.
4. Ensure that no exposed wires are touching other connections in the module.

5. Restore Power & Test the Sauna

1. Replace the HUUM Main Module cover and secure it with screws.
2. Do NOT reconnect the LED wires yet.
3. Plug the sauna power cord back into the power receptacle.
4. Turn on the sauna heater and let it run for at least 15 minutes.
   • Observe whether the breaker trips during this time.

6. Report Your Findings

📩 Submit Your Test Results
After testing, send the following details to Plunge Customer Support:

• Whether the breaker tripped during the test.
• Photos of the HUUM Main Module with the LED wires disconnected.
• Confirmation of the type of breaker panel (standard vs. GFCI).

Next Steps: Submitting Your Results

1. Create a support ticket

   • If you haven’t already, please submit a support request using our Contact Form.
   • Once your ticket is submitted, you will receive an email with a link to upload your required photos and submit your test results.

2. Email your test results

   • Reply to the support email with the following information:

Sauna LED Disconnection Test Results:

• Did the breaker trip when testing without the LED? [Yes/No]
• Type of breaker used (Standard or GFCI): [Insert Answer]
• Click the Snapcall link in the email to submit all photos/videos requested

📌 Why This Is Important: These details help determine if the LED system is causing the breaker trip, or if another issue is affecting your sauna.
