Manual and Setup Guide for the Plunge Evolve Pro Chiller

  • Updated

Read First Before Setting Up Your Plunge

Please read the Safety Precautions  and Warranty before setting up the Evolve Pro Chiller.

Download the Plunge App

Installing the app is essential for a few important reasons:

  • Remote Control: Control the temperature of the Plunge from your phone.
  • Metrics Monitoring: We can monitor metrics on your tub to proactively address any potential issues, ensuring your Plunge stays healthy and avoids disruptions.
  • Firmware Updates: Our team is dedicated to ensuring your Plunge stays current with the latest firmware. To keep your unit updated, simply stay connected to the Plunge App to receive the update notifications.
  • Filter Instructions: The app walks you through the step-by-step process for changing your filter, helping maintain your Plunge’s performance.

Water Chemistry Outline

  • We recommend showering prior to use for anyone using the Plunge. This will help maintain the chemical balance in the water.
  • Important note: keeping the Plunge outside will shorten the lifespan of the chemicals due to UV rays and more organic material entering the water.
  • The Plunge should not be filled with well water. Please make sure to properly strip the water with an ion exchange filter before filling the Plunge if you are on well water.
  • The Plunge maintenance protocol is based on cold water only. For more details please refer to this article: Caring For Your Plunge Evolve Tub and Pro Chiller

Important warranty information
Please note that damage caused by freezing conditions or improper water chemistry are not covered under our warranty. If the temperature in your area drops below freezing and water isn’t flowing, your plumbing system will crack and break.

Please monitor your Plunge daily when the outside temperature is close to below freezing to ensure constant flow. If the ambient temperature is below 32°F / 0°C for 12 hours, you must drain the Plunge, filter and chiller and fully winterize the Plunge.

Stagnant water is not sanitary for the system. Solidified bio-matter can form inside the pipes and requires a deep clean with hot water to fix. This can also appear if no sanitation is done. Please follow the maintenance protocol included in the manual.

Using an Extension Cord Outdoors

If you plan to use an extension cord, it needs to be 12 gauge to give the plunge sufficient power up to 25 feet. Please refer to NEC requirements for your jurisdiction.

If you place your Plunge outdoors and use an extension cord, you will need to use a Weatherproof Connection Box – Indoor & Outdoor Electrical Power Cord Enclosure to protect the cord. If you need more information you can reach out to our Plunge Experts by submitting a request ticket on our Help Center or emailing us at support@plunge.com.

After unpacking please allow the Evolve Chiller to sit for 20 minutes to allow the coolant to settle.

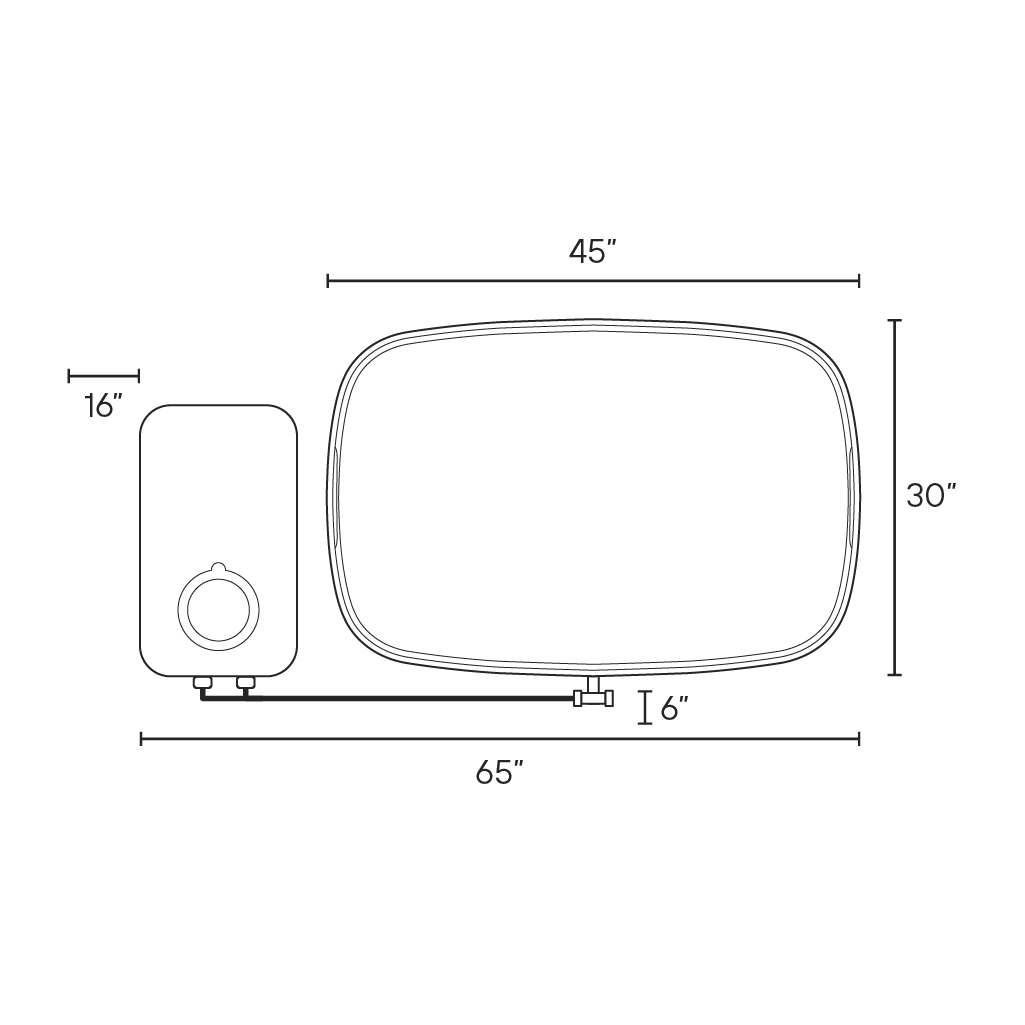

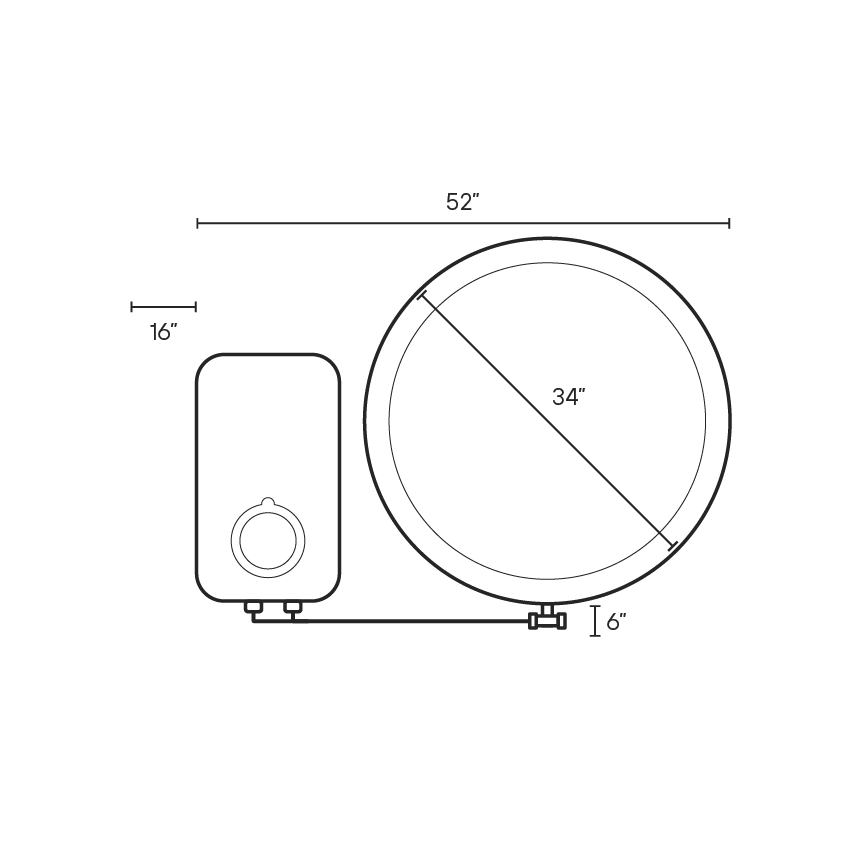

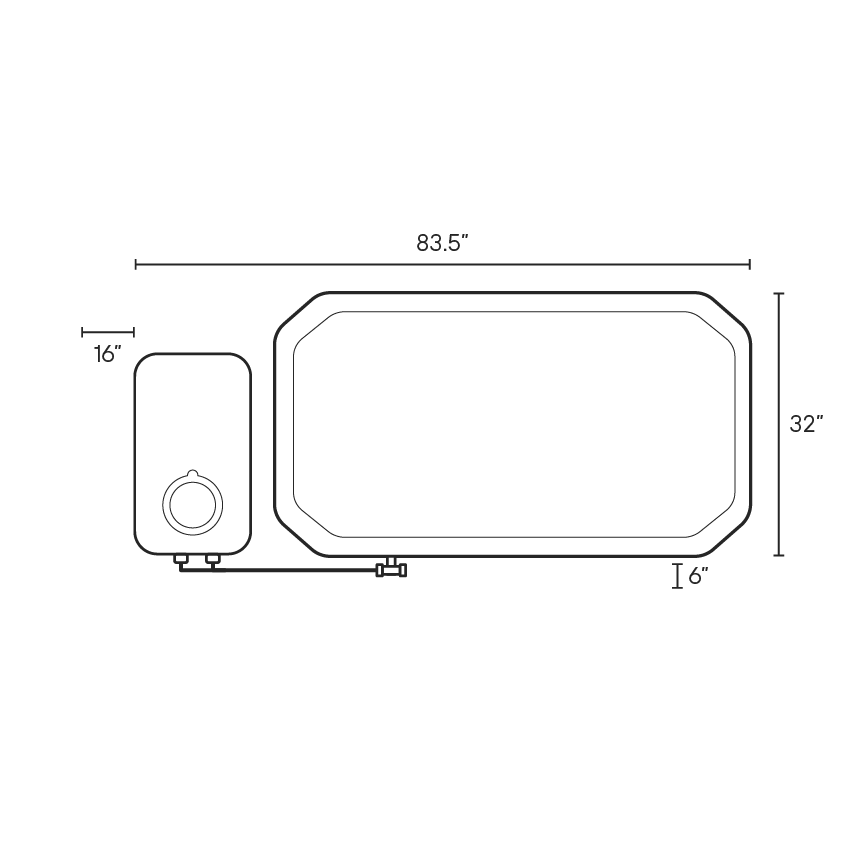

Location Requirements

Plunge Evolve XL

Plunge Air

Plunge Pop-Up

Plunge Pod

Top view_transparent.png

Set Up

Make sure you've completed the set up instructions for your tub before continuing.

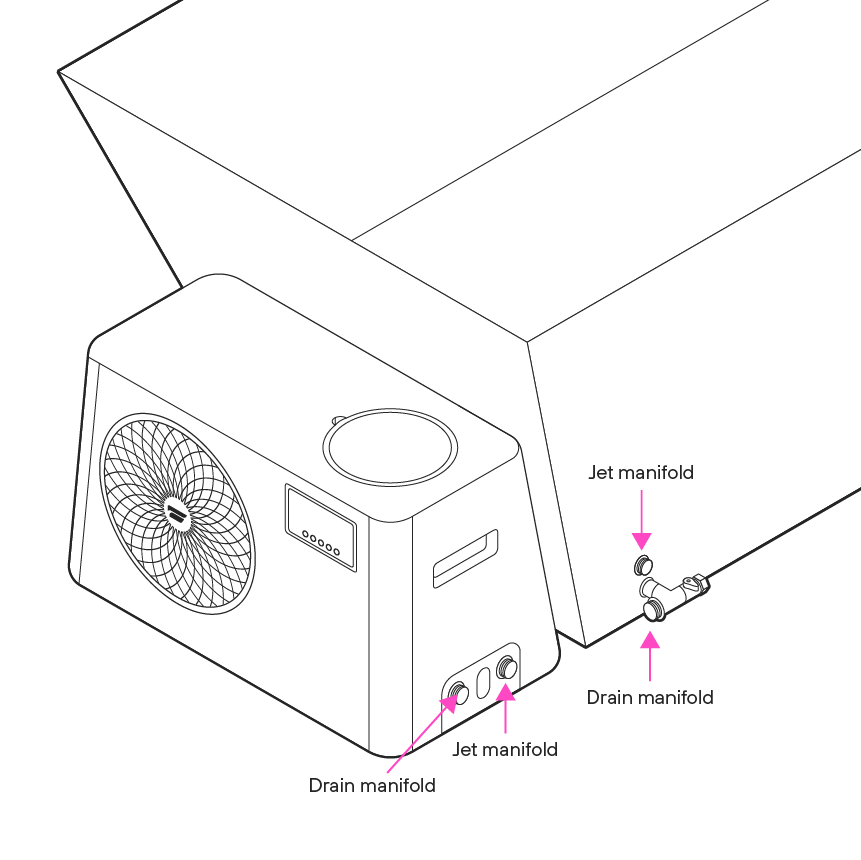

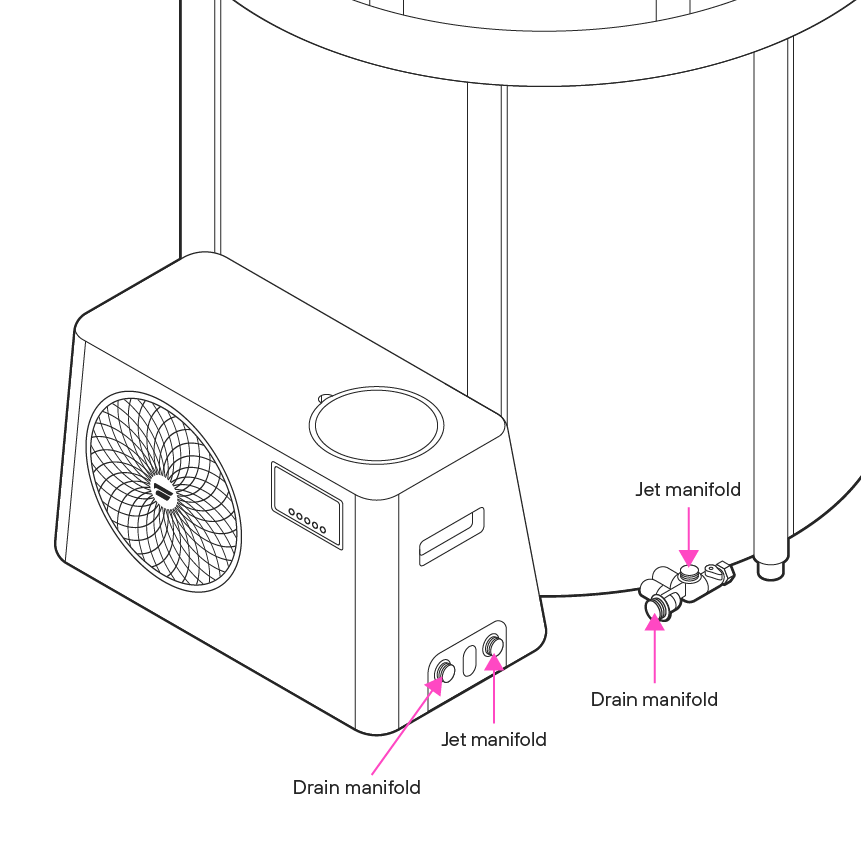

Step 1: Chiller Placement

/!\ DANGER: Risk of electric shock. Install at least 1.5 meters (5 feet), from all electrical outlets and appliances.

  • Make sure the Plunge and the Chiller are on a solid, flat, waterproof surface.
  • Locate where the chiller connections will connect to the tub.
  • Place the chiller on the end with the circular fan facing out and about 4 inches from the tub. Note: Make sure there is at least 16 inches between the chiller fan and the wall to allow for ventilation; not doing so will void your warranty.

Plunge Evolve XL

Step 1 - Evolve XL.png

Plunge Air

Step 1 - Air.png

Plunge Pop-Up

Step 1 - Pop Up.png

Plunge Pod

Step 1-1-1_transparent (1).png

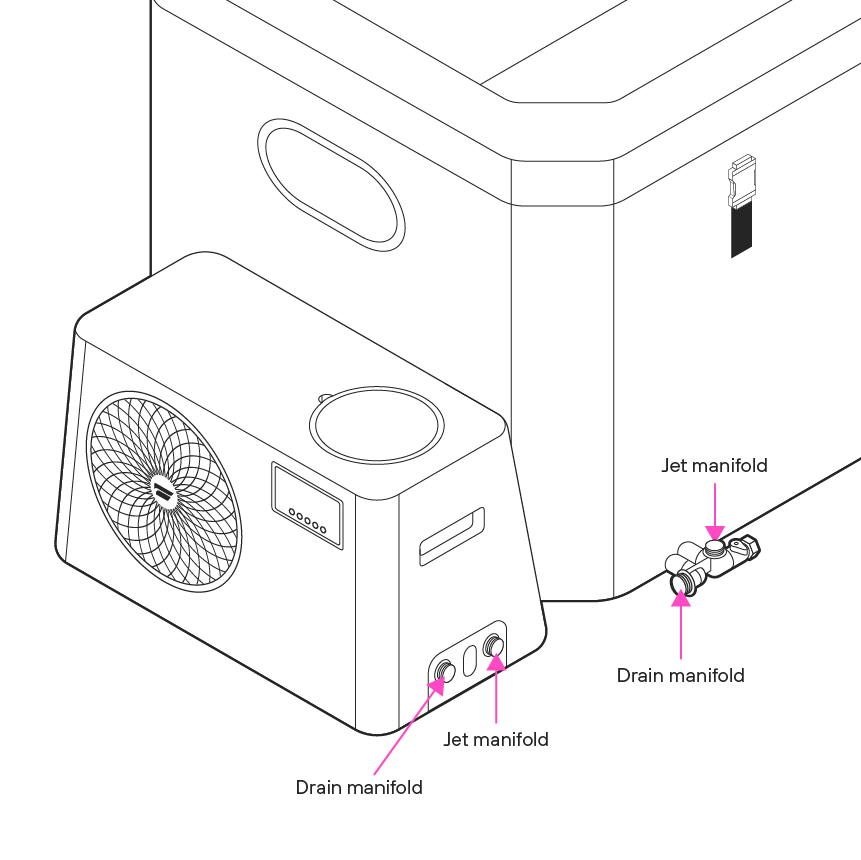

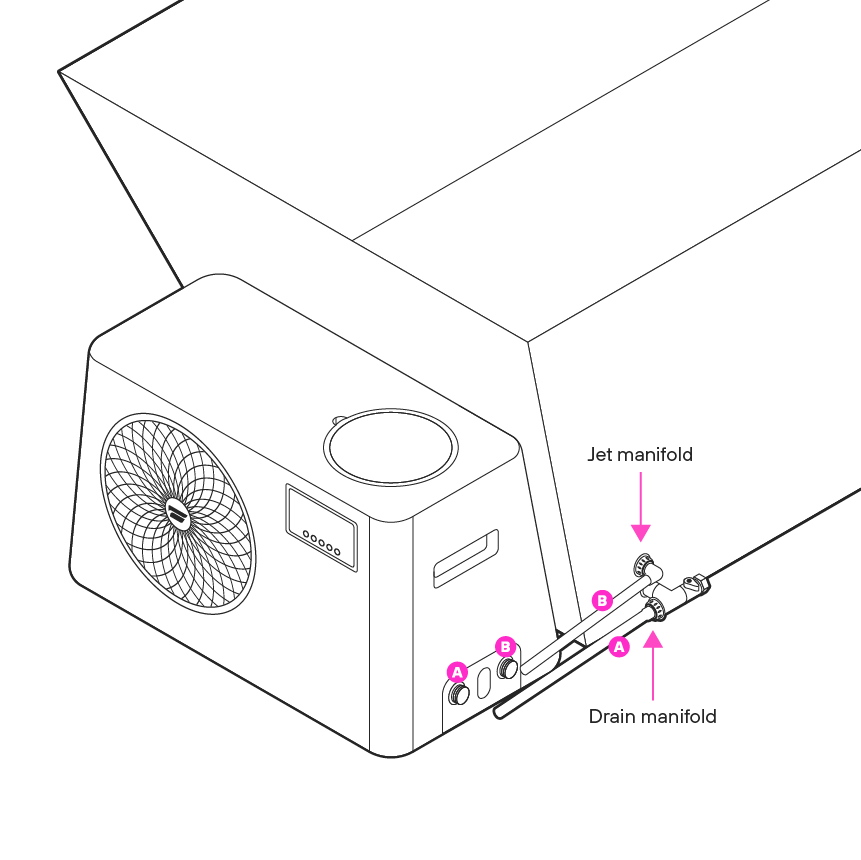

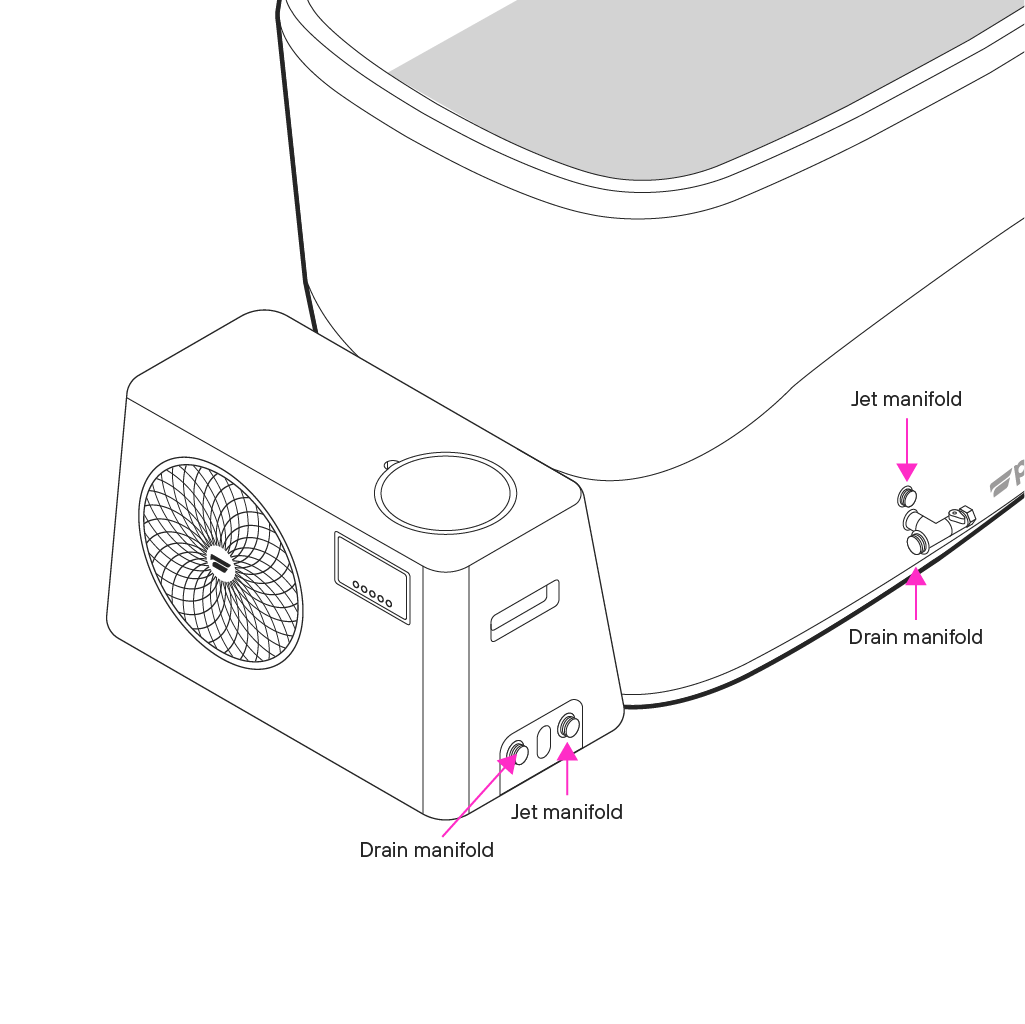

Step 2: Connecting the Tub

  • Find connection A
  • Check to make sure the black O-ring is seated in the connection collar.
  • Connect it to the drain port on the tub indicated in the image. Tighten the collar until it is hand-tight.
  • Find connection B
  • Check to make sure the black O-ring is seated in the connection collar.
  • Connect it to the jet port on the tub indicated in the image. Tighten the collar until it is hand-tight.

Please make sure the threading is on straight and not cross-threaded. Cross-threading can damage the connection collars. The connection collar should turn with ease.

Evolve XL


Plunge Air

Plunge Pop-Up

Plunge Pod

Step 2-1-1_transparent.png

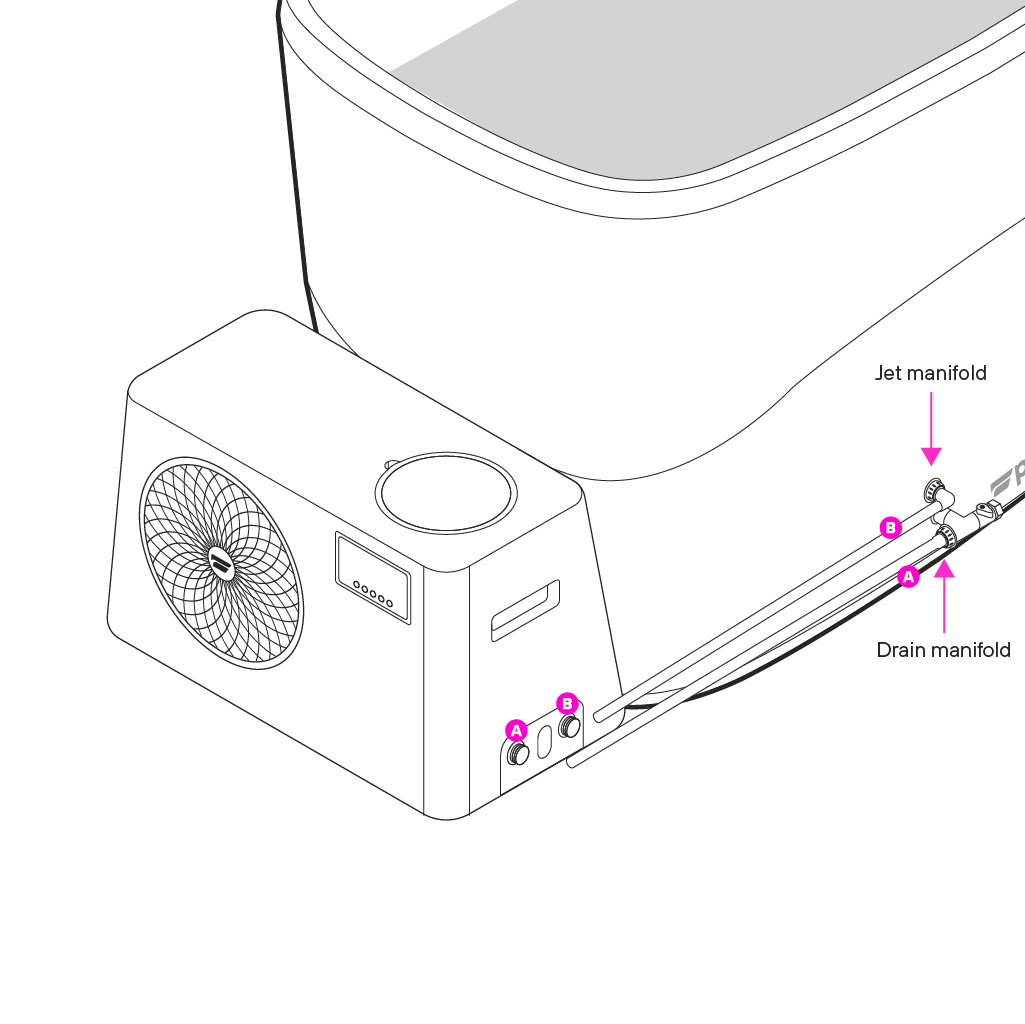

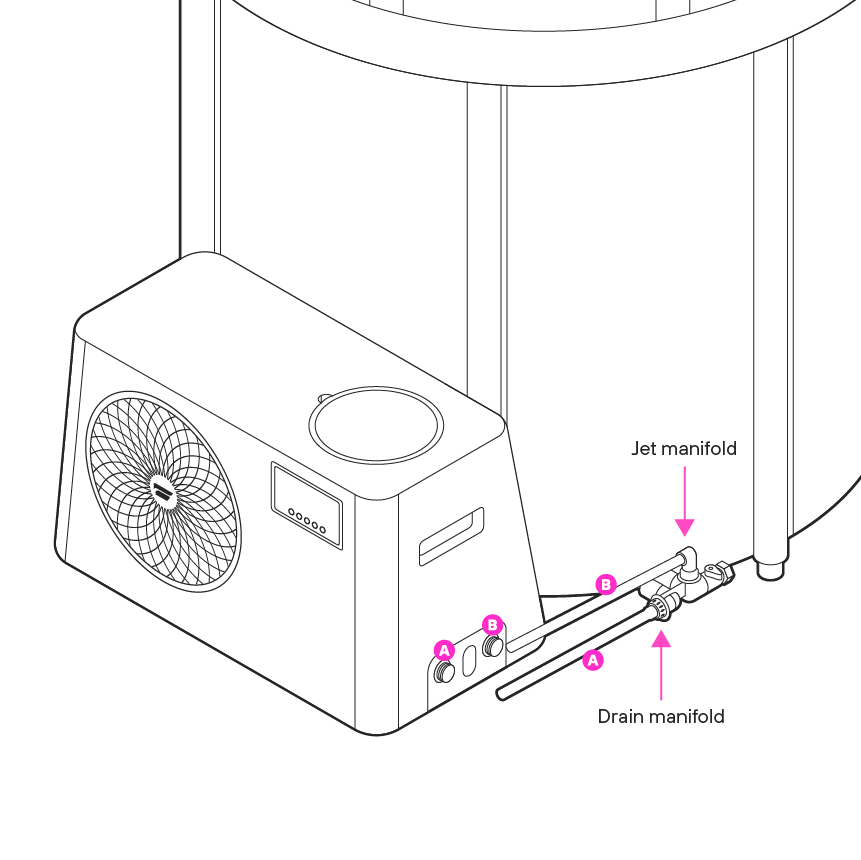

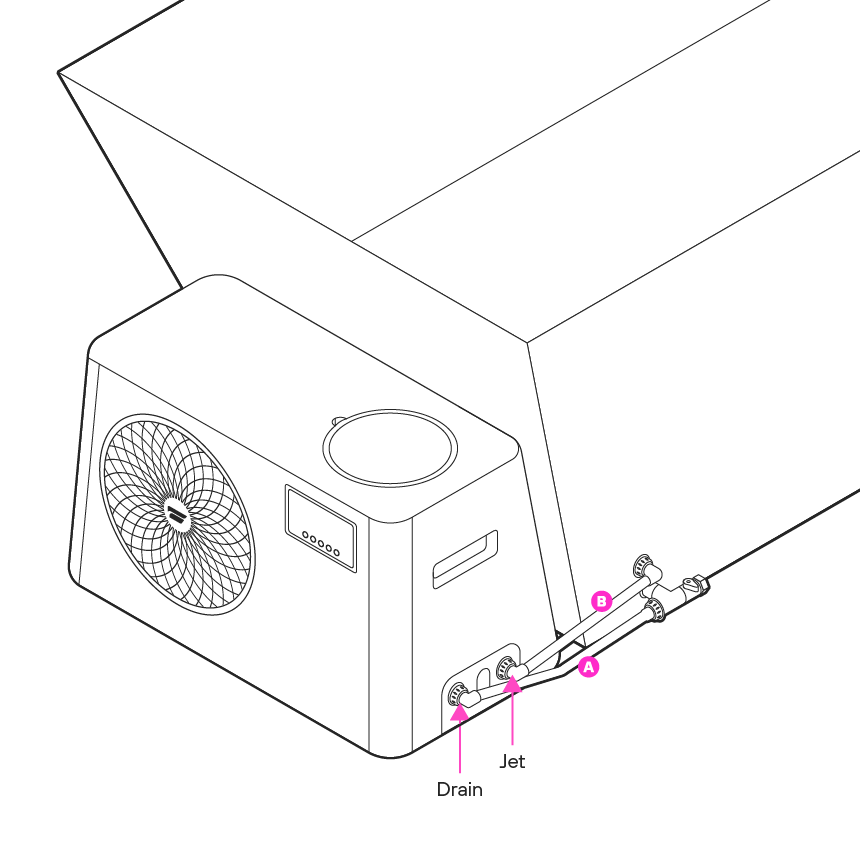

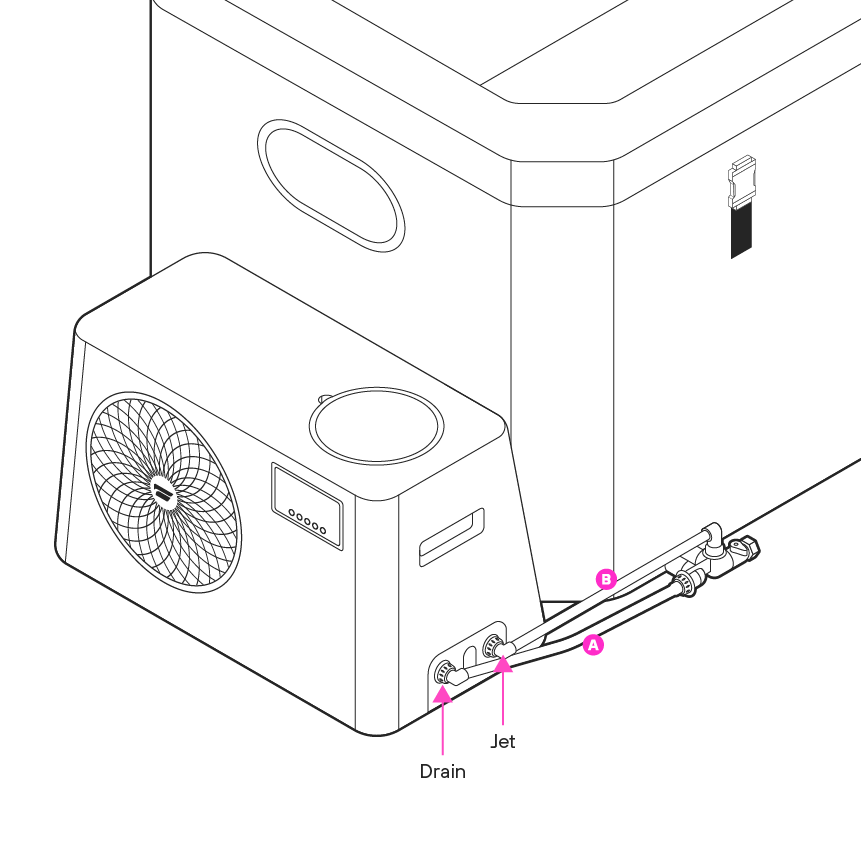

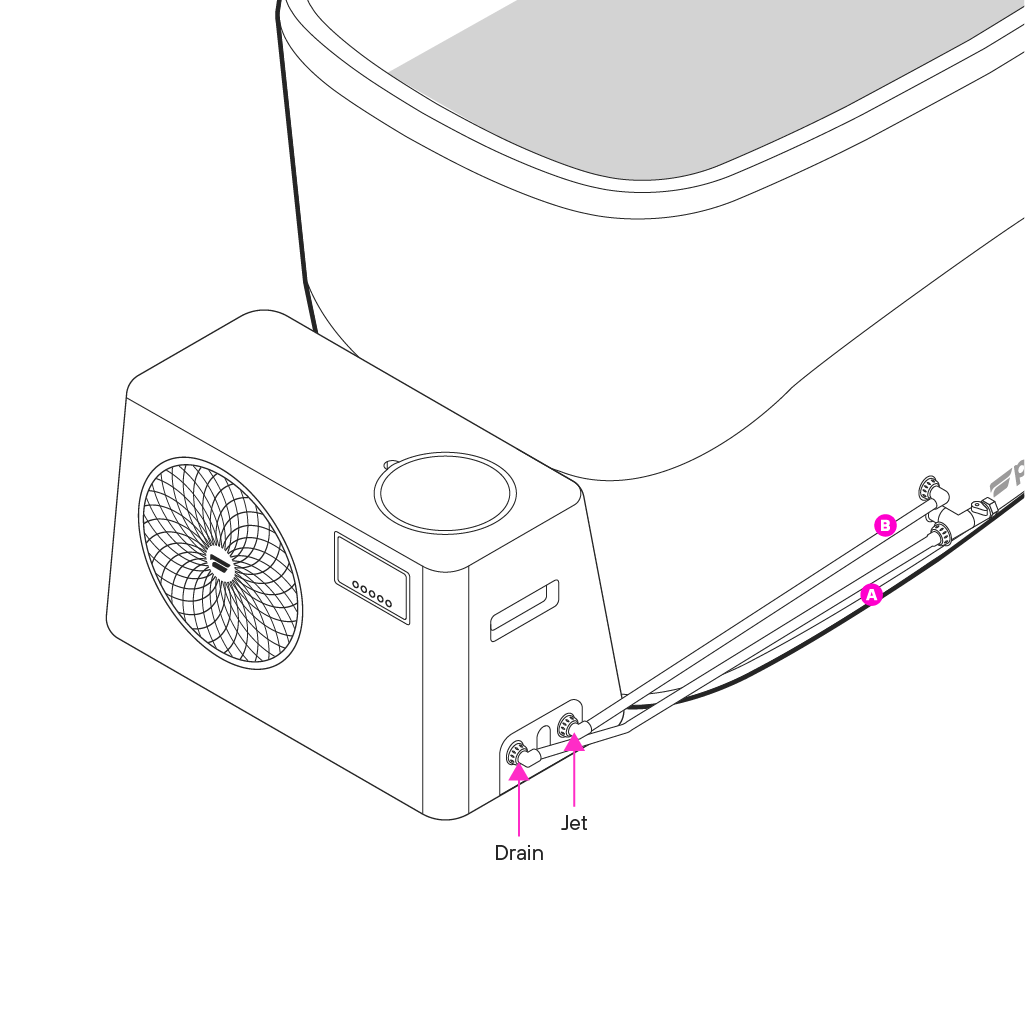

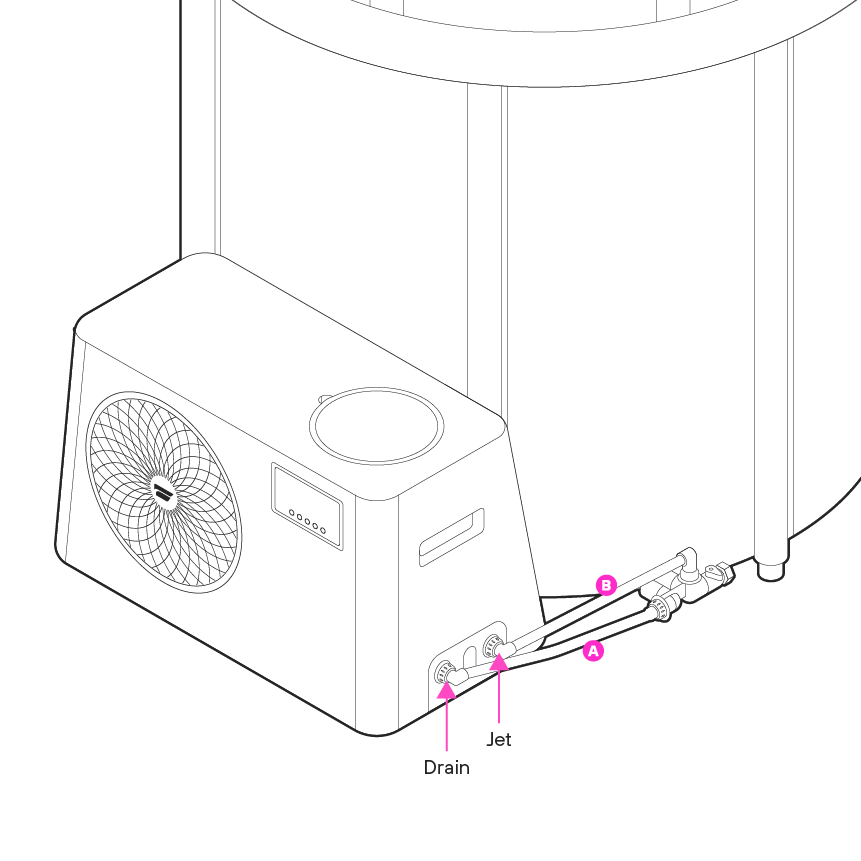

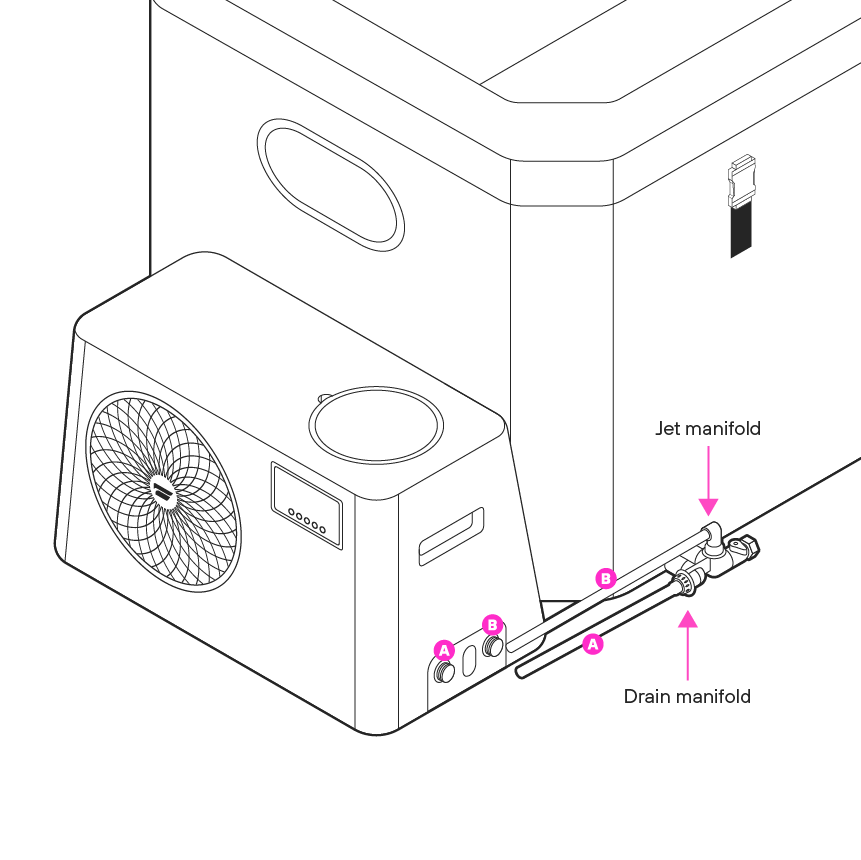

Step 3: Connecting the Chiller

  • Grab connection A and check to make sure the black O-ring is seated in the connection collar.
  • Connect connection A to the drain port on the chiller indicated in the image.
  • Grab connection B and check to make sure the black O-ring is seated in the connection collar.
  • Connect connection B to the jet port on the chiller indicated in the image.

Please make sure the threading is on straight and not cross-threaded. Cross-threading can damage the connection collars. The connection collar should turn with ease.

Evolve XL


Plunge Air

Plunge Pop-Up

Plunge Pod

Step 3-1-1_transparent (1).png

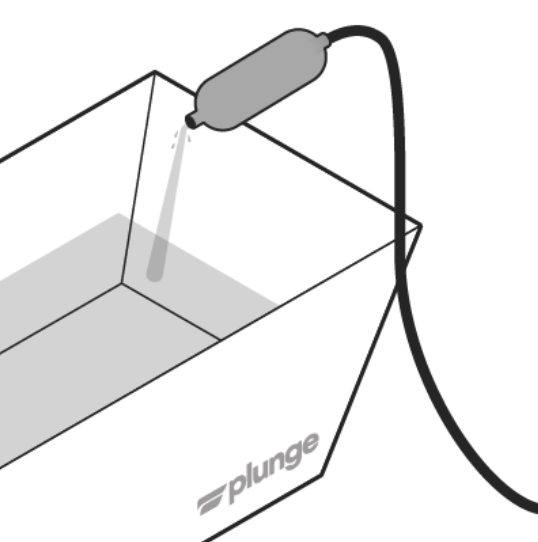

Step 4: Fill the Plunge

  • Attach the included carbon hose filter to a garden hose.
  • Run water through it into a drain until the water turns clear.
  • Then, fill the interior of the Plunge with water until it reaches 5 inches from the top.
  • Please note: If you have the Plunge Pod, make sure the safety strap is installed before filling the tub.

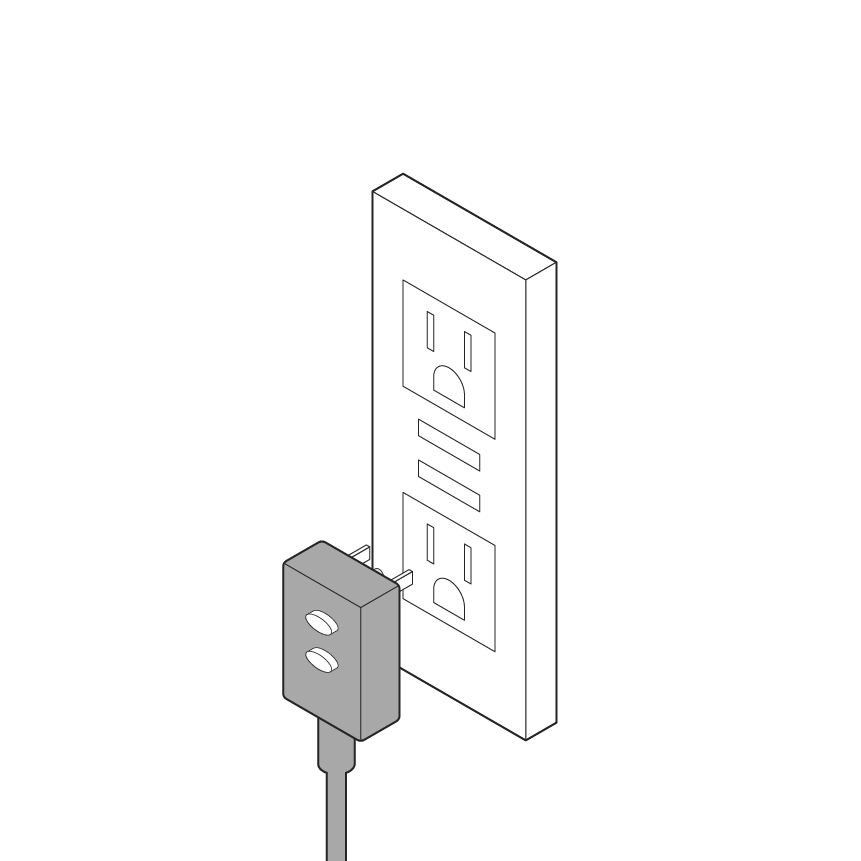

Step 5: Plug in the Evolve Pro Chiller

/!\ WARNING: Only plug your Evolve Pro Chiller into a dedicated 120V 15A 2 wire plus ground service outlet with a GFCI plug.  The term “dedicated” means that the electrical circuit for the Plunge is not being used for any other electrical items.  The electrical supply for this product must include a suitable 15A circuit breaker. The plug must be readily accessible and visible to the Plunge occupant but installed at least 1.5 meters (5 feet), from the Plunge water.

  • Once the tub is full you can plug in your Plunge to a dedicated 15 amp Circuit (120V).
  • Ensure the Evolve Pro Chiller has rested for at least 20 minutes for the coolant to settle before plugging it into the outlet.
  • Note: If you plan to use an extension cord, it needs to be 12 gauge to give the Plunge sufficient power up to 25ft. Please follow all NEC requirements.



 Step 4 - Plug in .png

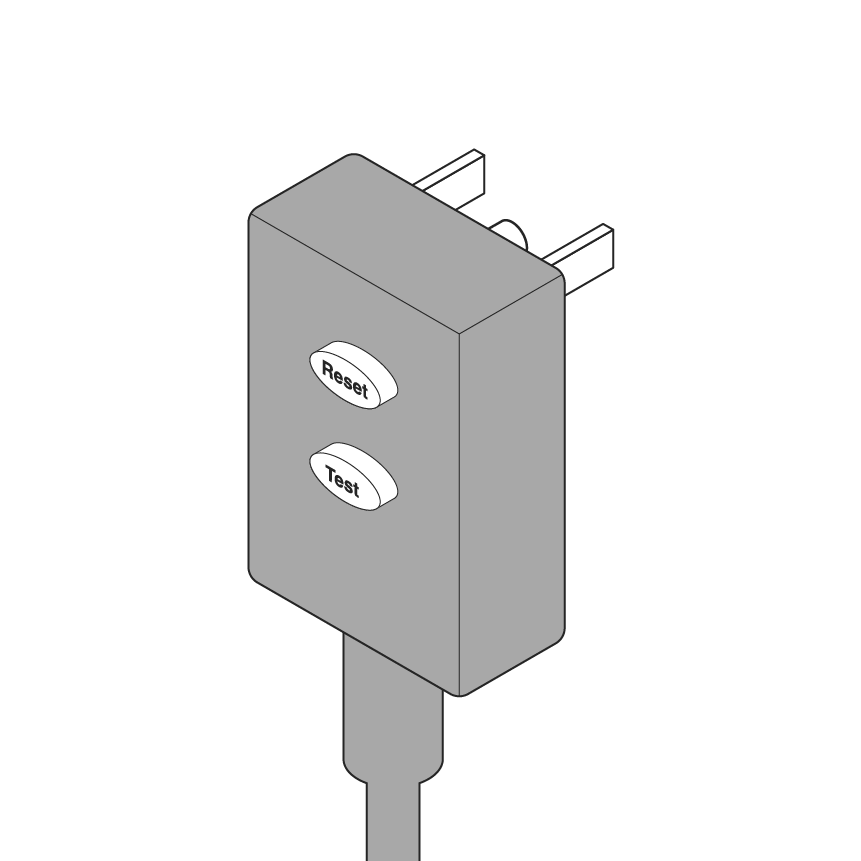

Step 6: Turning the Plunge On

  • Locate the two buttons on the power cord that say “test” and “reset”.
  • Press the “reset” button to turn it on.
  • You should hear the jets turn on and see the screen on the chiller light up with the current temperature.
 Step 5 - Turn on.png

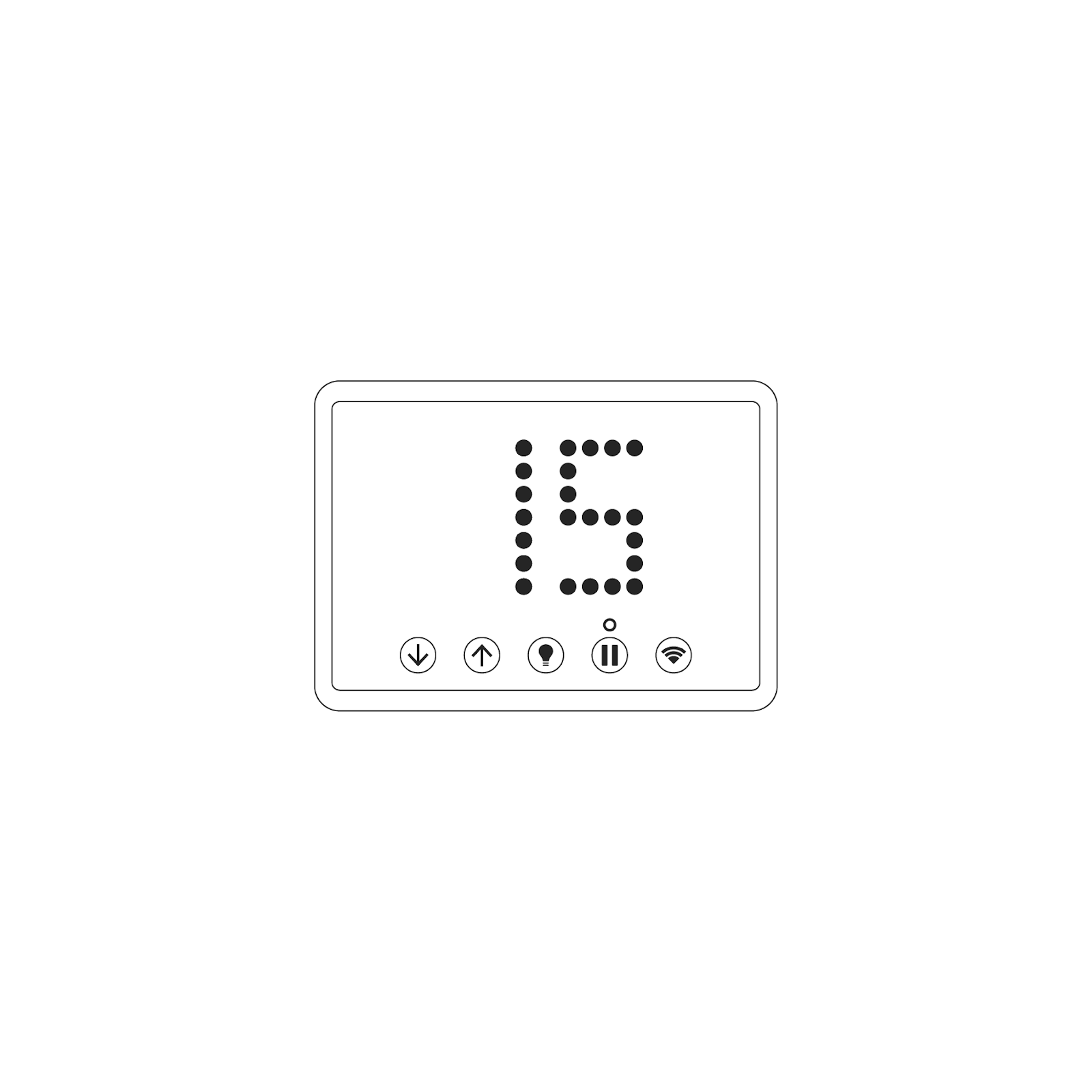

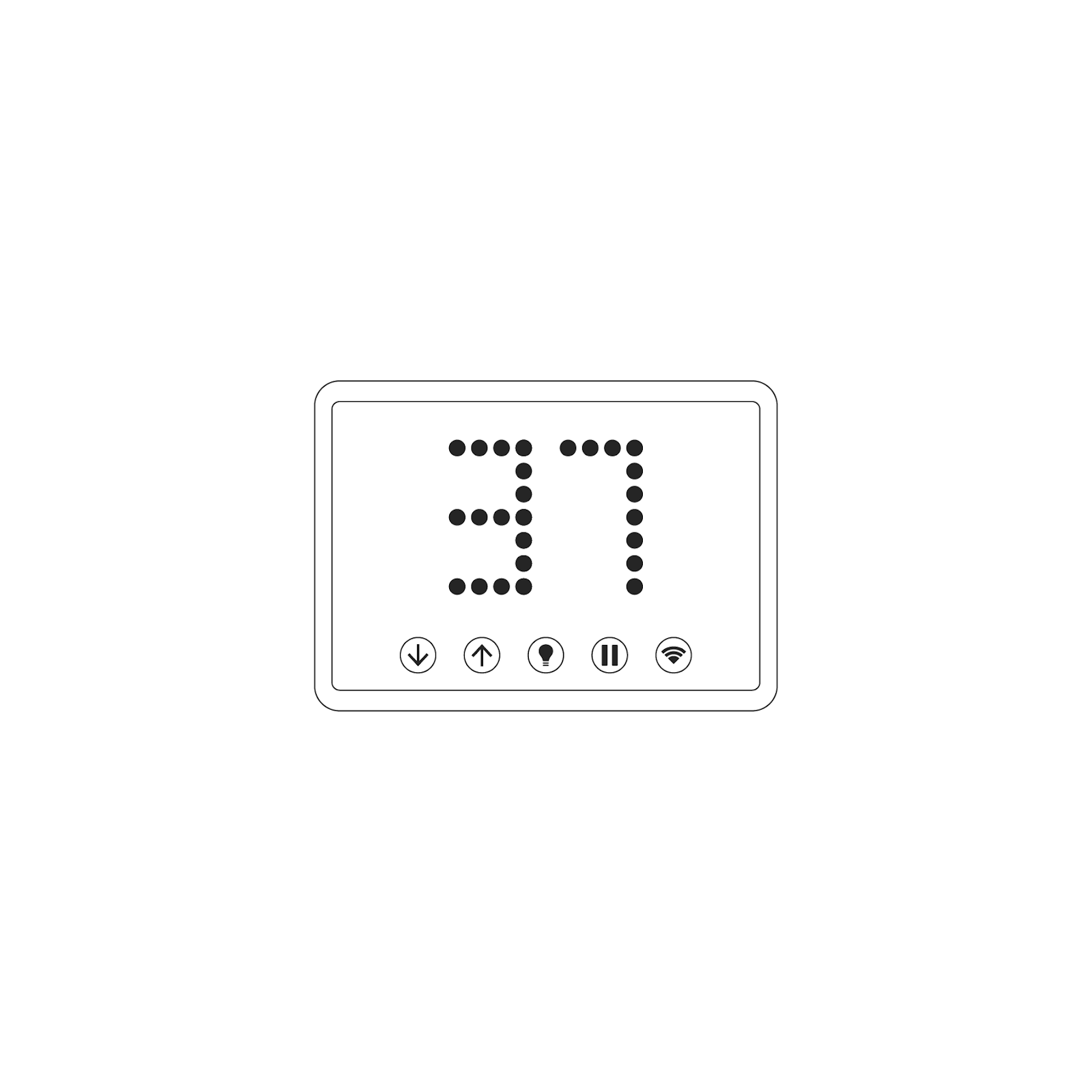

Step 7: Set your Temperature

  • Press the up and down arrows on the back of the tub to set your desired temperature.
  • The blue arrow indicates cooling, and the red arrow indicates heating.

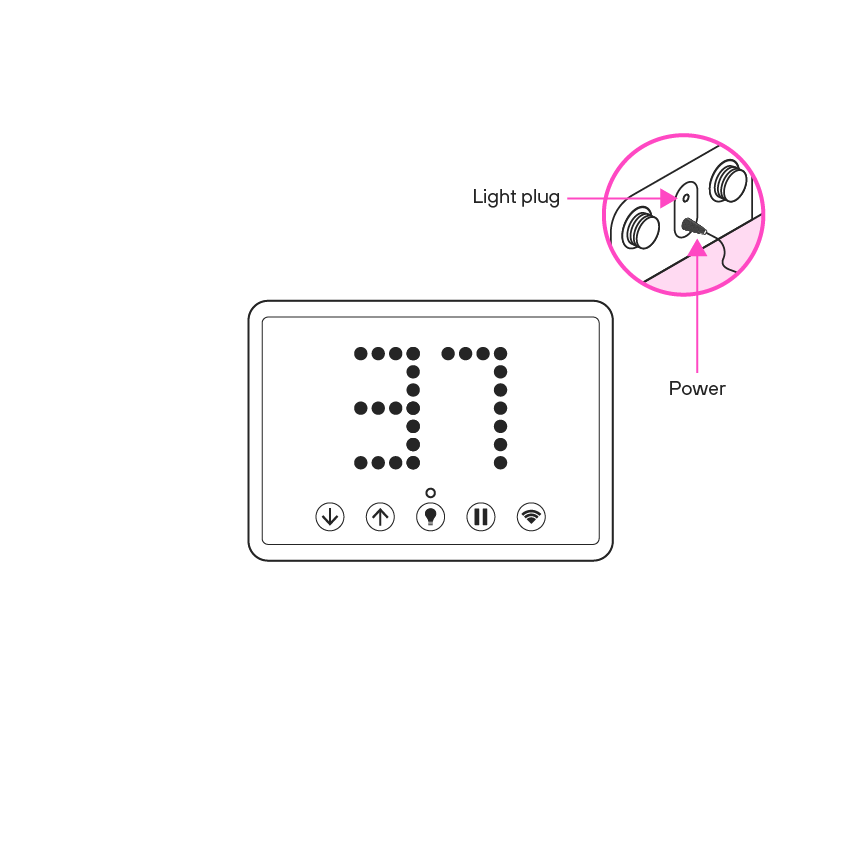

Step 8: Operate Light

For Plunge Evolve XL Tubs Only

  • The plug for the light should be taped onto the side of the tub when it arrives.
  • Remove the tape and unwind the plug.
  • Plug the light into the location indicated in the image below.
  • To operate the light, just press the button with the light bulb to turn it on and press it. again to turn it off. Note: The light will automatically turn off after four hours.
 Step 7 - Lights.png

Step 9: Pausing the Jets

  • For a quieter Plunge experience, you can pause the jets by pressing the pause button.
  • It will pause in increments of 15 minutes up to an hour.
  • Once the timer runs out, the jets will turn back on and resume circulating the water.

Step 10: Water Maintenance

Please go here to purchase your water maintenance kit for your Evolve Pro Chiller.



Step 11: Take the Plunge, and get ready to change your life!

 Happy Plunging!



Connecting to the Plunge App

Please download the Plunge App from the App Store.

Once you've added your product, follow the directions provided in the app.
