Manual and Setup Guide for the Plunge Air Tub

Read First Before Setting Up Your Plunge

Please read the Safety Precautions and Warranty before setting up the Plunge Air.

Set Up

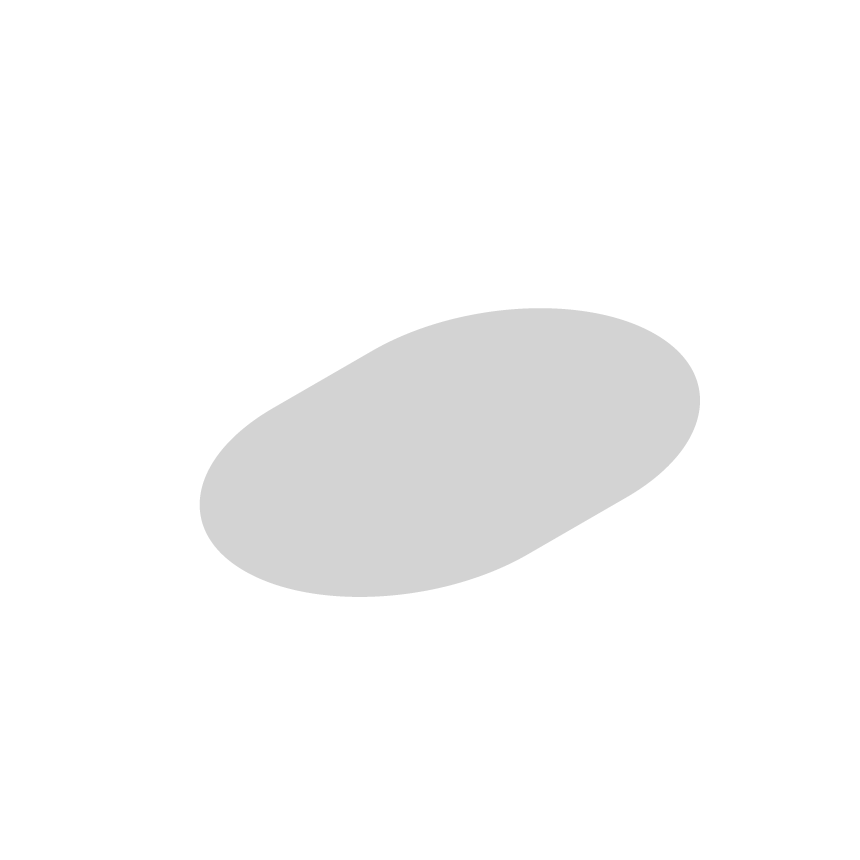

Step 1: Placing the Protective Ground Cover

  • Find the gray protective ground cover and unwrap it. Cover Dimensions: 63”x37”
  • Clear the area where you intend to place the Plunge of debris.
  • Place the ground cover on a waterproof location of your choice.*

*Note: If you purchased the Evolve Pro Chiller, please follow the location requirements in the chiller manual.

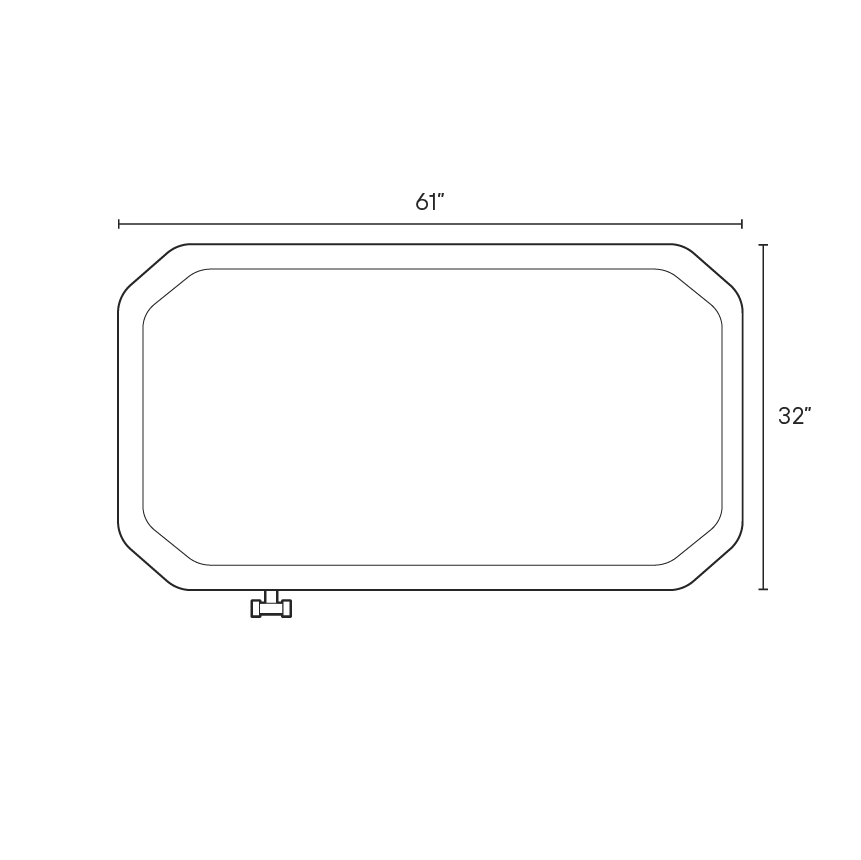

Step 2: Placing the Plunge Air

Unwrap the Plunge Air and place it on top of the gray protective mat.

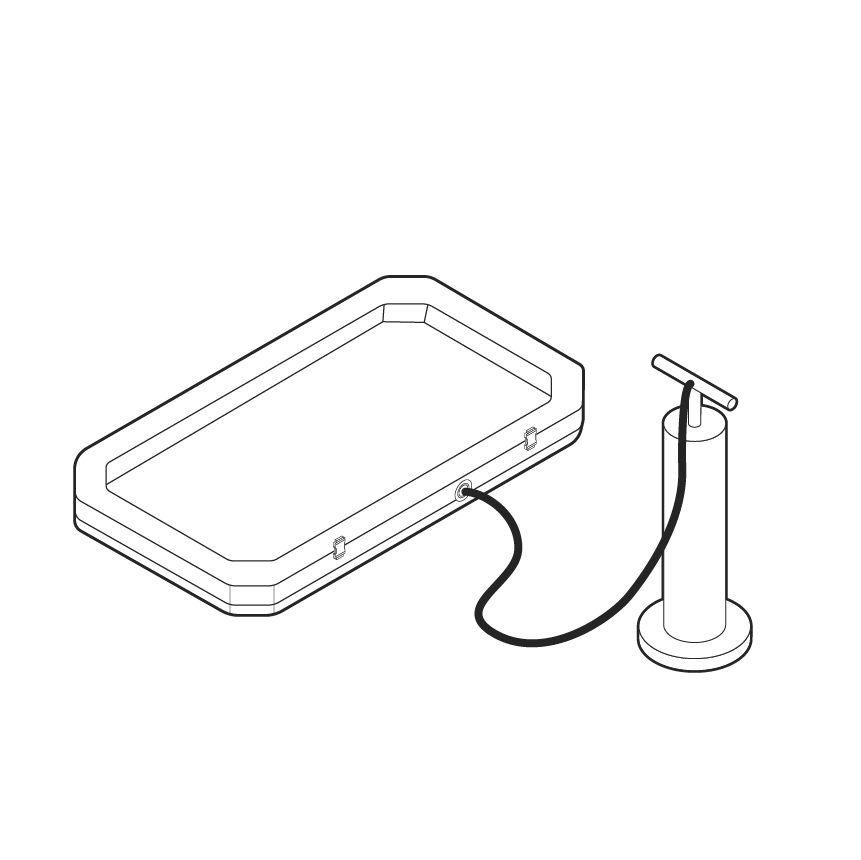

Step 3: Inflate the Plunge Air

Connect the black air pump and inflate the tub until it reaches 8 PSi.

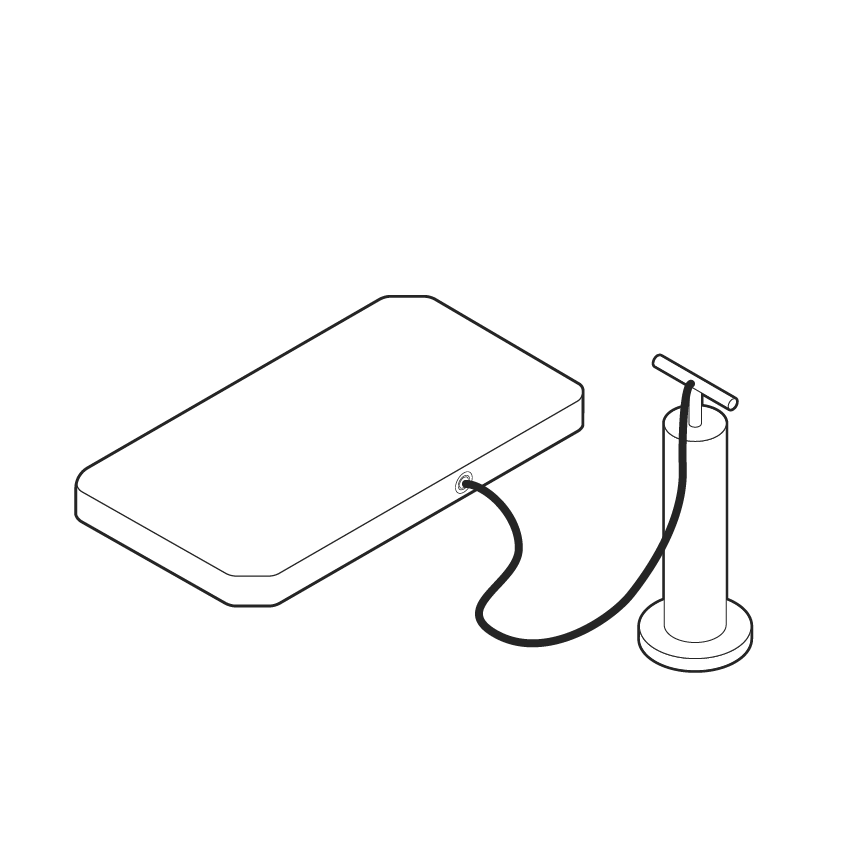

Step 4: Inflate the Cover

Connect the black air pump and inflate the cover to 8 PSi.




warning sign" Emoji - Download for free ... If you purchased the Evolve Pro Chiller please go here.

If you purchased the Evolve Standard Chiller please go here. warning sign" Emoji - Download for free ...

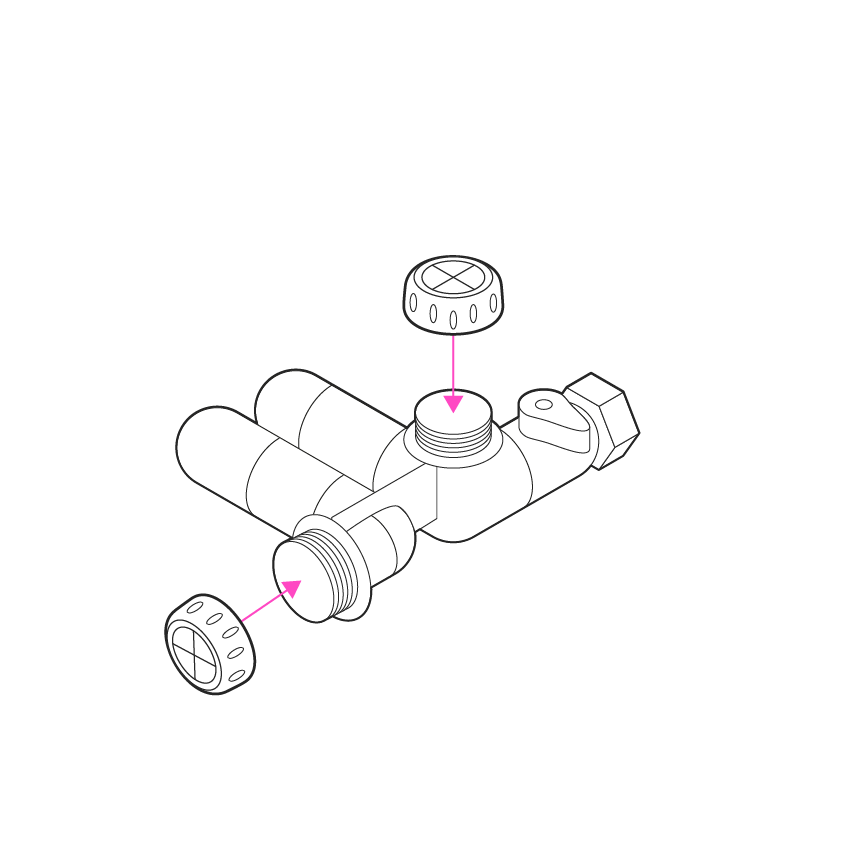

Step 5: Secure Manifold Plugs

  • Find the manifold plugs pictured and place them on the drain and jet manifold, sealing them closed.
  • Make sure to tighten the collars and the drain valve until they are hand-tight to prevent leaking.
Step 4.png

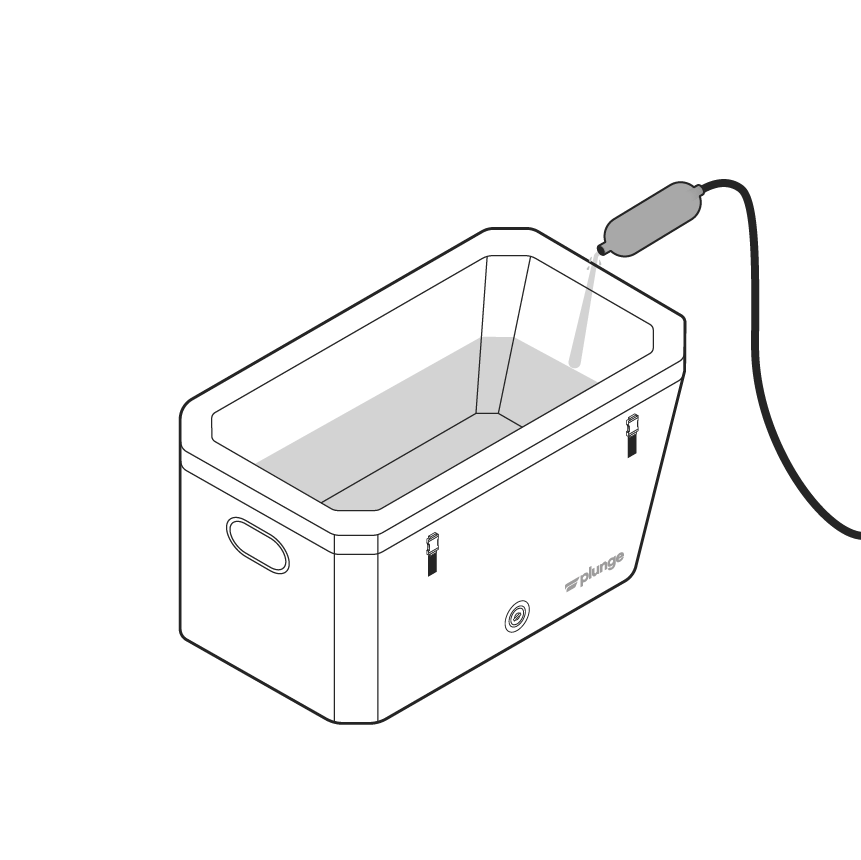

Step 6: Fill the Plunge Air With Water

  • Make sure the white drain valve is in the closed position (perpendicular to the tub).
  • Fill the Plunge Air with water until it reaches 8 inches from the top.

Step 6: Add Ice and Plunge!

Step 4 (1).png
