Manual and Setup Guide for the Plunge Evolve Standard Chiller

  • Updated

Read First Before Setting Up Your Plunge

Please read the Safety Precautions  and Warranty before setting up the Evolve Standard Chiller.

Water Chemistry Outline

  • We recommend showering prior to use for anyone using the Plunge. This will help maintain the chemical balance in the water.
  • Important note: keeping the Plunge outside will shorten the lifespan of the chemicals due to UV rays and more organic material entering the water.
  • The Plunge should not be filled with well water. Please make sure to properly strip the water with an ion exchange filter before filling the Plunge if you are on well water.
  • The Plunge maintenance protocol is based on cold water only. For more details please refer to this article: Caring For Your Plunge Evolve Tub and Standard Chiller

Important warranty information
Please note that damage caused by freezing conditions or improper water chemistry are not covered under our warranty. If the temperature in your area drops below freezing and water isn’t flowing, your plumbing system will crack and break.

Please monitor your Plunge daily when the outside temperature is close to below freezing to ensure constant flow. If the ambient temperature is below 32°F / 0°C for 12 hours, you must drain the Plunge, filter and chiller and fully winterize the Plunge.

Stagnant water is not sanitary for the system. Solidified bio-matter can form inside the pipes and requires a deep clean with hot water to fix. This can also appear if no sanitation is done. Please follow the maintenance protocol included in the manual.

Using an Extension Cord Outdoors

If you plan to use an extension cord, it needs to be 12 gauge to give the plunge sufficient power up to 25 feet. Please refer to NEC requirements for your jurisdiction.

If you place your Plunge outdoors and use an extension cord, you will need to use a Weatherproof Connection Box – Indoor & Outdoor Electrical Power Cord Enclosure to protect the cord. If you need more information you can reach out to our Plunge Experts by submitting a request ticket on our Help Center or emailing us at support@plunge.com.

After unpacking please allow the Evolve Standard Chiller to sit for 20 minutes to allow the coolant to settle.

Location Requirements

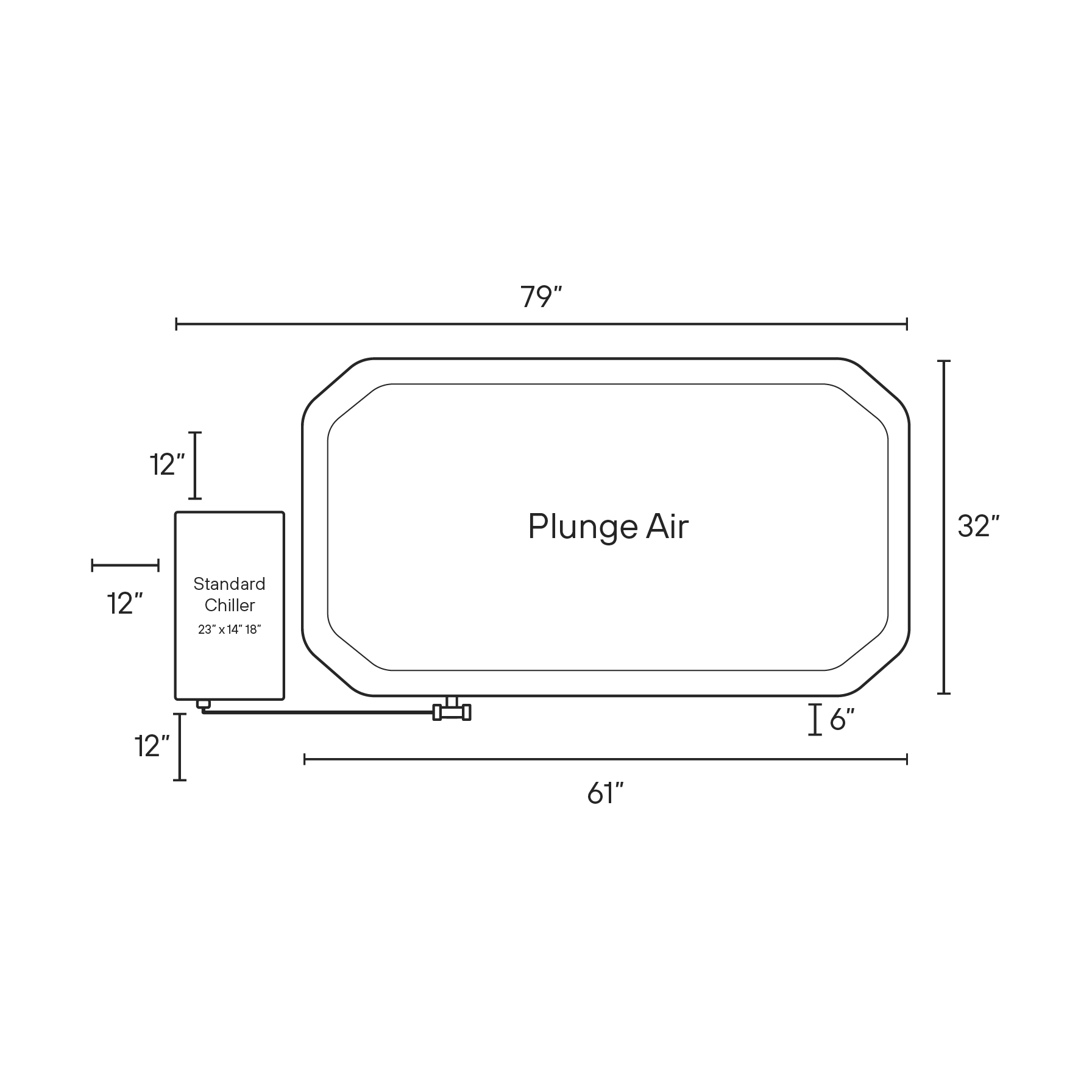

There should be 12 inches of space on each side of the chiller that is facing out. There needs to be enough space from the wall to the chiller to allow for ventilation of the fan and to have the ability for an easy filter change. Not doing so could potentially damage the chiller and void your warranty.

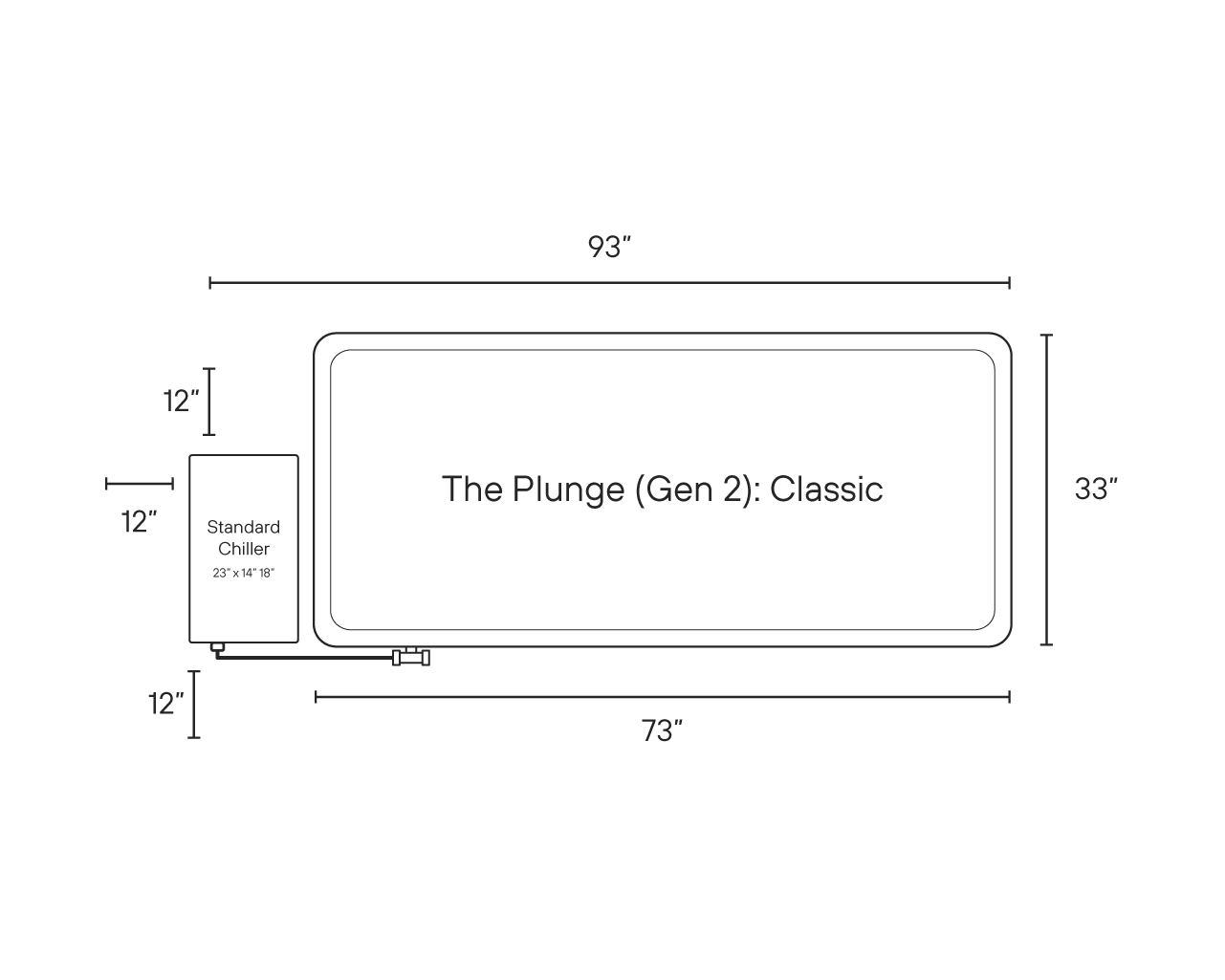

Plunge Evolve XL: Classic


Plunge Evolve XL: Modern


Plunge Air

Evolve Standard Chiller-Illo_Location Req - Plunge Air (1).png

Plunge Pod

Top view (4).png

Plunge Pop-Up

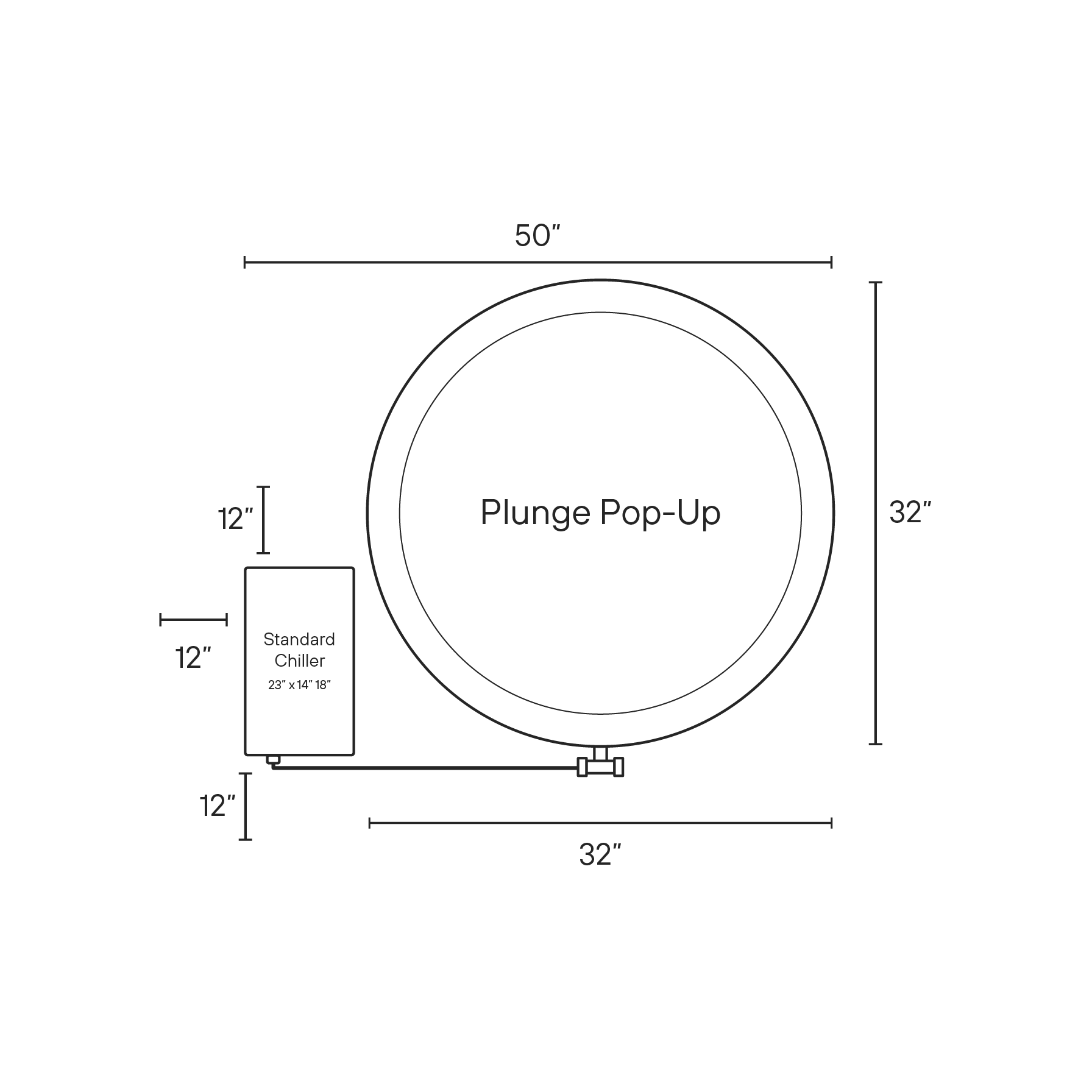

Evolve Standard Chiller-Illo_Location Req - Pop-Up (1).png

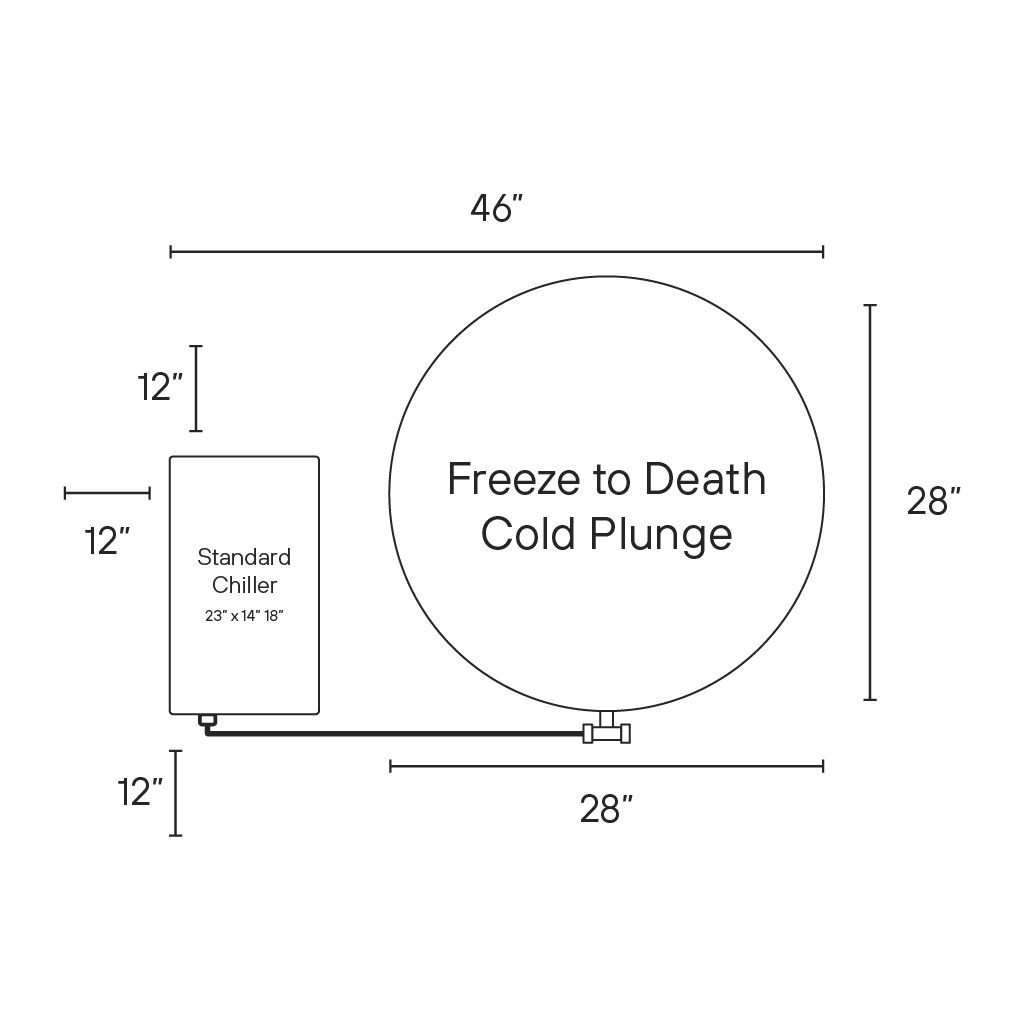

Freeze to Death Cold Plunge

Top View-1-1 (1).png



Get to know your Standard Chiller

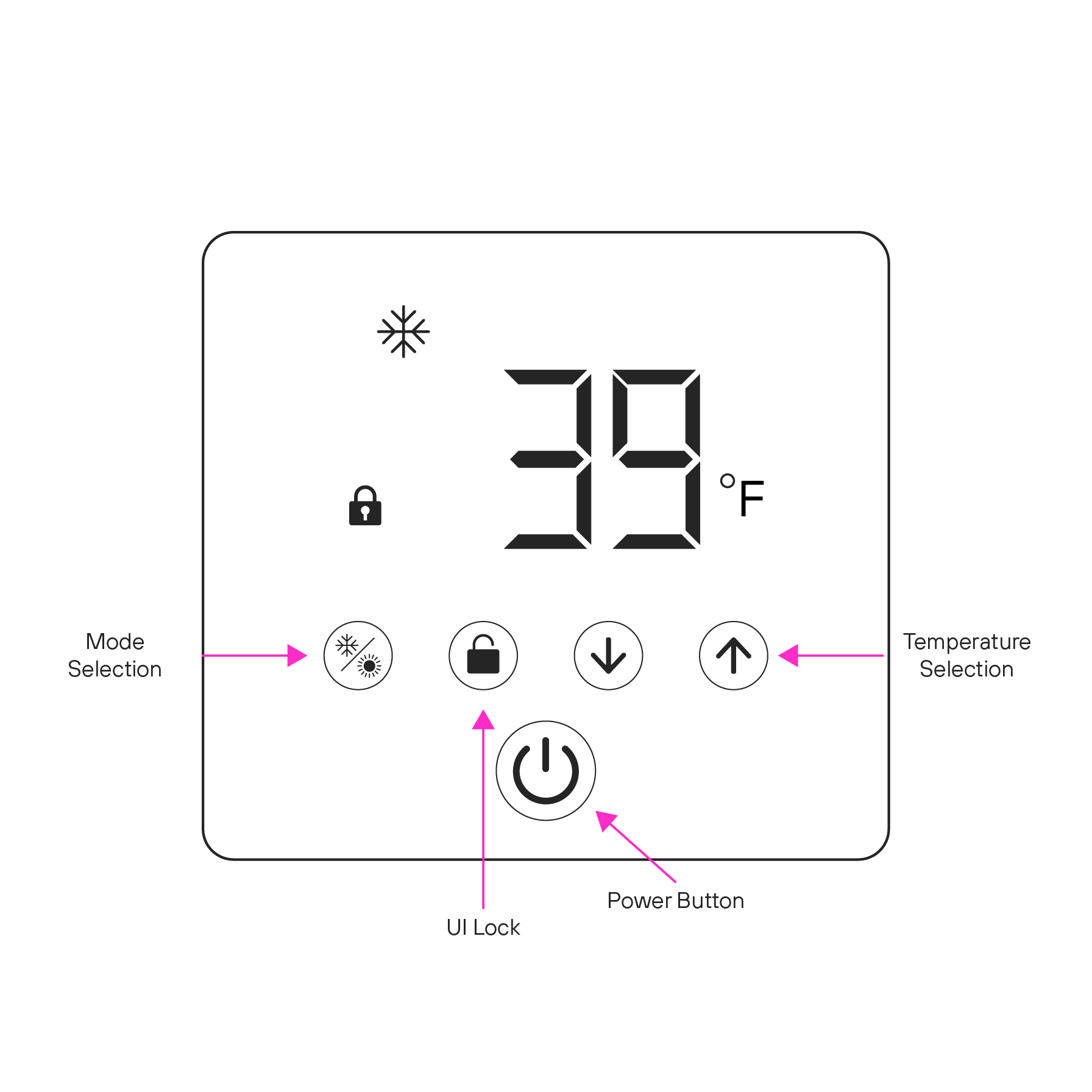

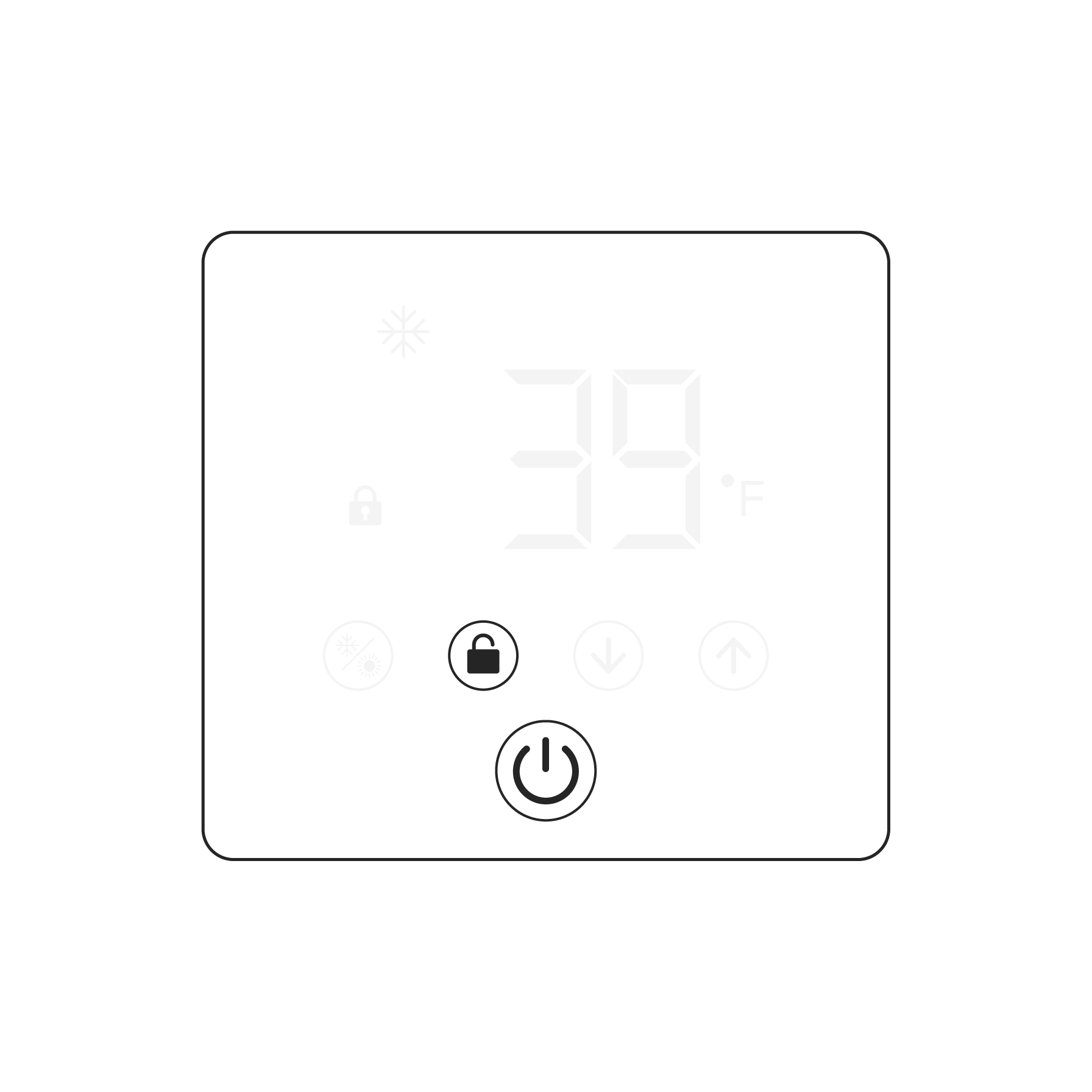

UI Lock: To unlock, hold for 5 seconds

Temperature Adjustment: Adjust the temperature up or down.

Power Button: To turn the chiller on or off, hold the power button for 3 seconds.

Evolve Standard Chiller-Illo_01 - Chiller Instructions (1).png

Modes:

Cool Frame 2135.png Cooling mode will always chill the water to the set temperature no matter the ambient temperature.
Heat (Add heater unit) Frame 2136.png Heating mode will always heat the water to the set temperature no matter the ambient temperature.
Auto (Add heater unit) Frame 2137.png Auto mode will always be striving to reach your set temperature no matter the ambient temperature.



Chiller Connections

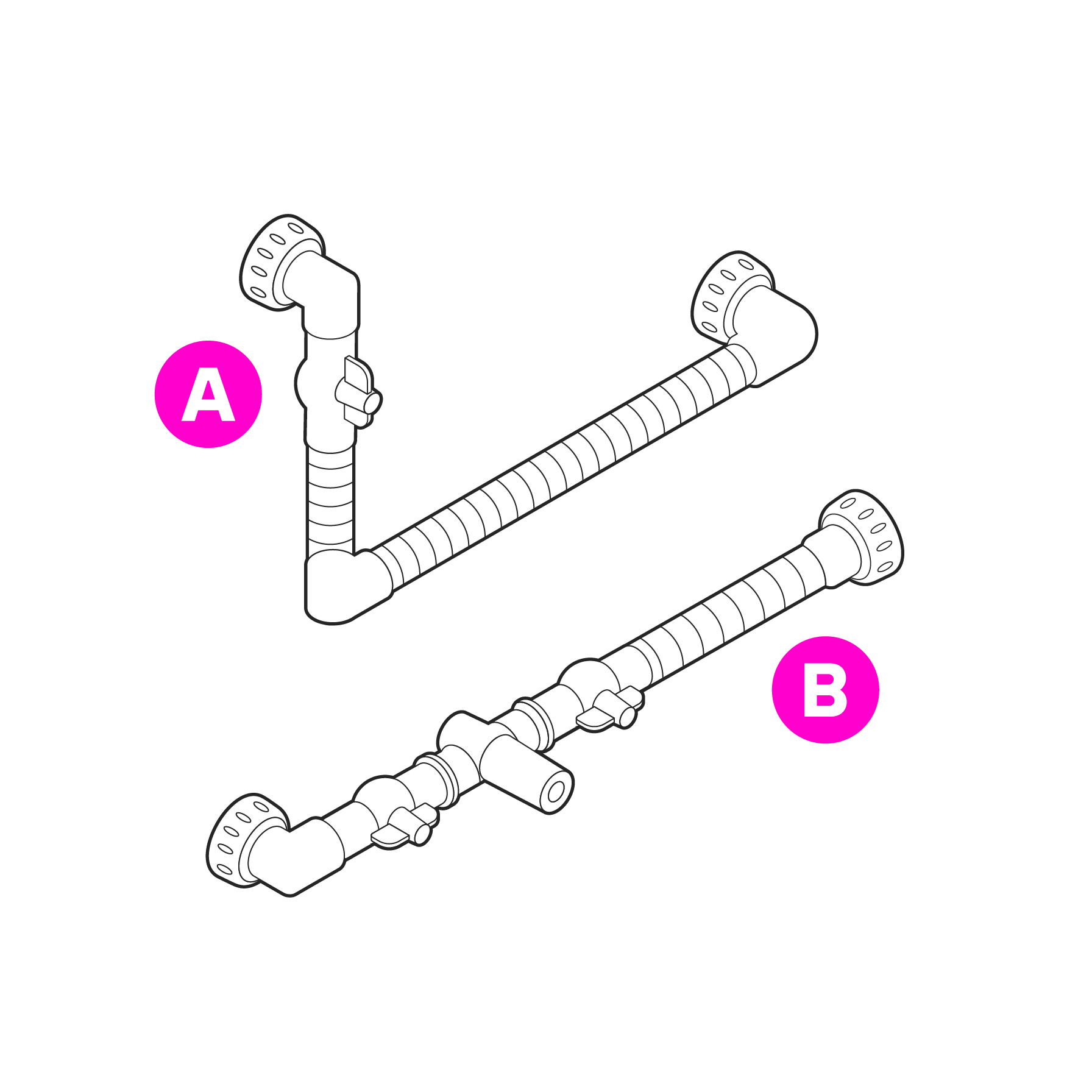

Chiller Connection A: Jets

Chiller Connection B: Drain

Evolve Standard Chiller-Illo 1-1_2 - Chiller Connections.png



Set Up

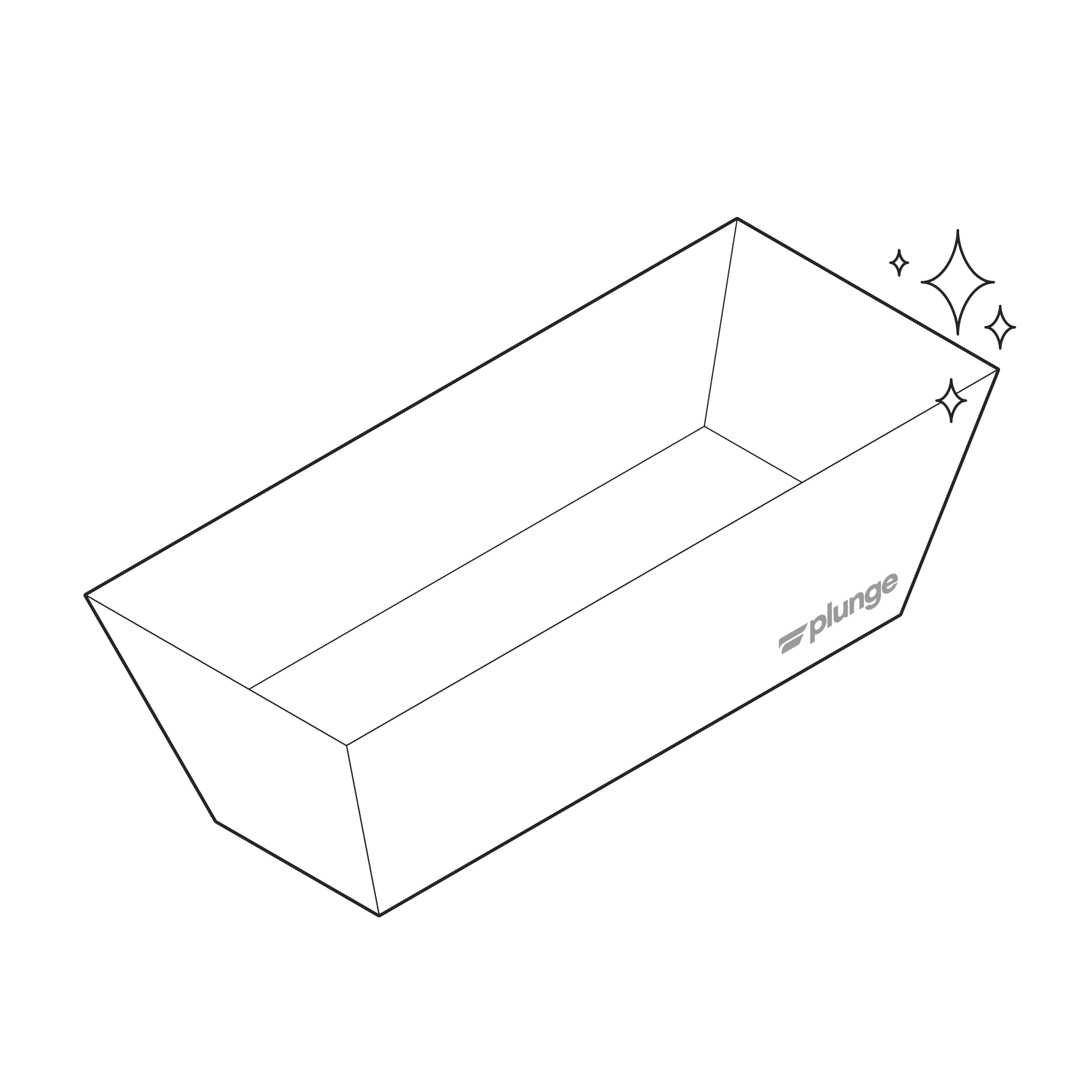

Step 1: Wipe Down Tub

  • Using a rag or non abrasive sponge, wipe down the tub. You can use a household degreaser to wipe off any dirt from travel.
 Evolve Standard Chiller-Illo_Step 1 - Clean.png

Step 2: Chiller Placement

  • Double check that the Plunge and the Chiller are on a solid, flat, waterproof surface.
  • Please note: if you have the unit with the added heater, it needs to be placed outdoors.

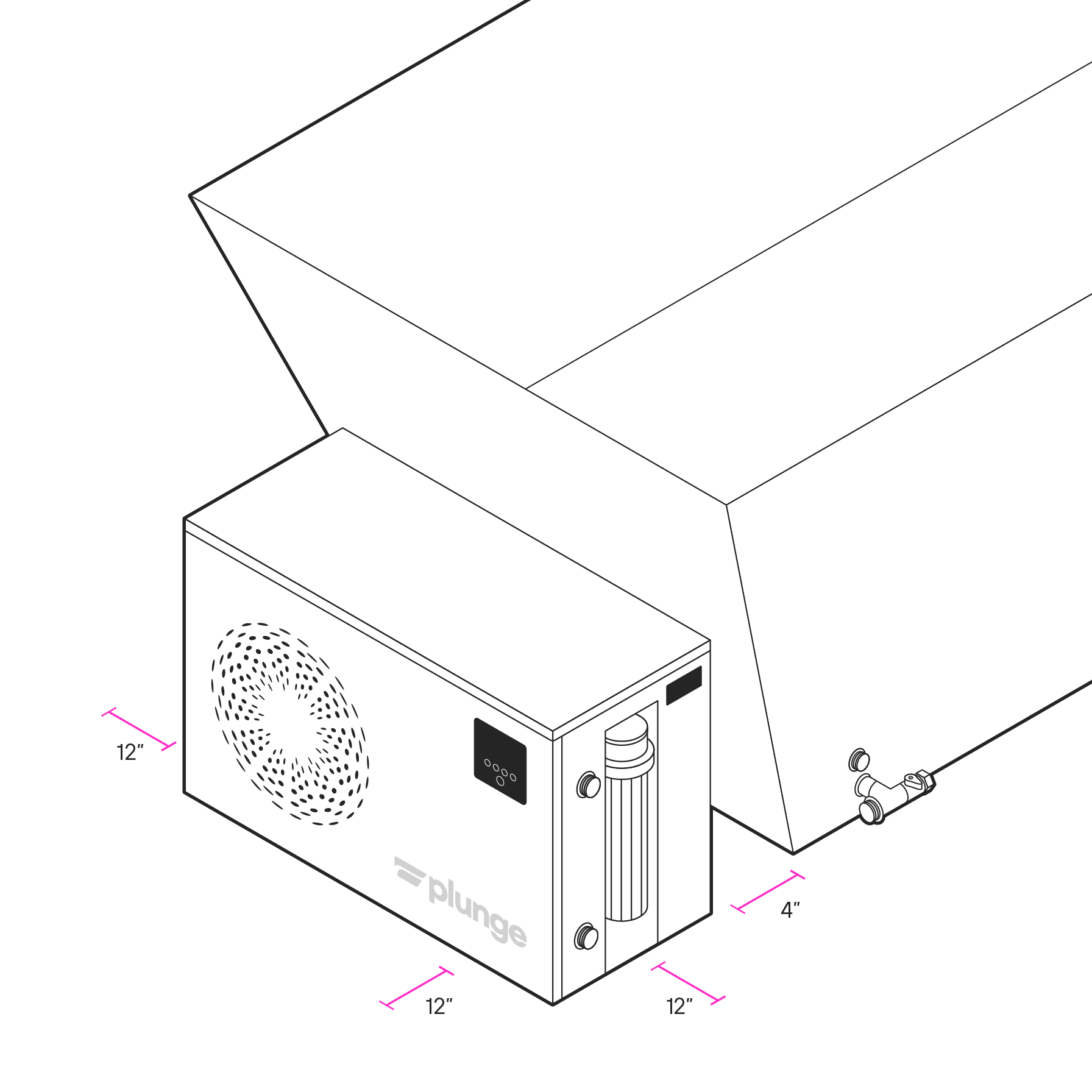

  • Locate where the chiller connections will connect to the tub and place the chiller fan and UI facing out with the unit 4 inches from the tub.
  • When placing the tub and the chiller make sure there is at least 12 inches on the side where the filter is located to give enough space to access and service the unit.
  • Check to see if there is 12 inches between the chiller fan and side vent and the walls to allow for ventilation. Not doing so will void your warranty.
Evolve Standard Chiller-Illo_Step 2- Chiller Placement-.png

Step 3: Connecting Connection B

  • Find connection B and check for the black o-ring inside the connection collar.

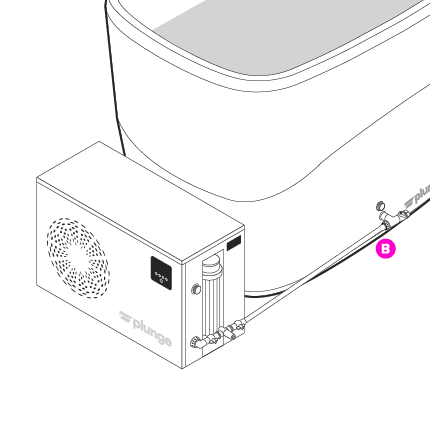

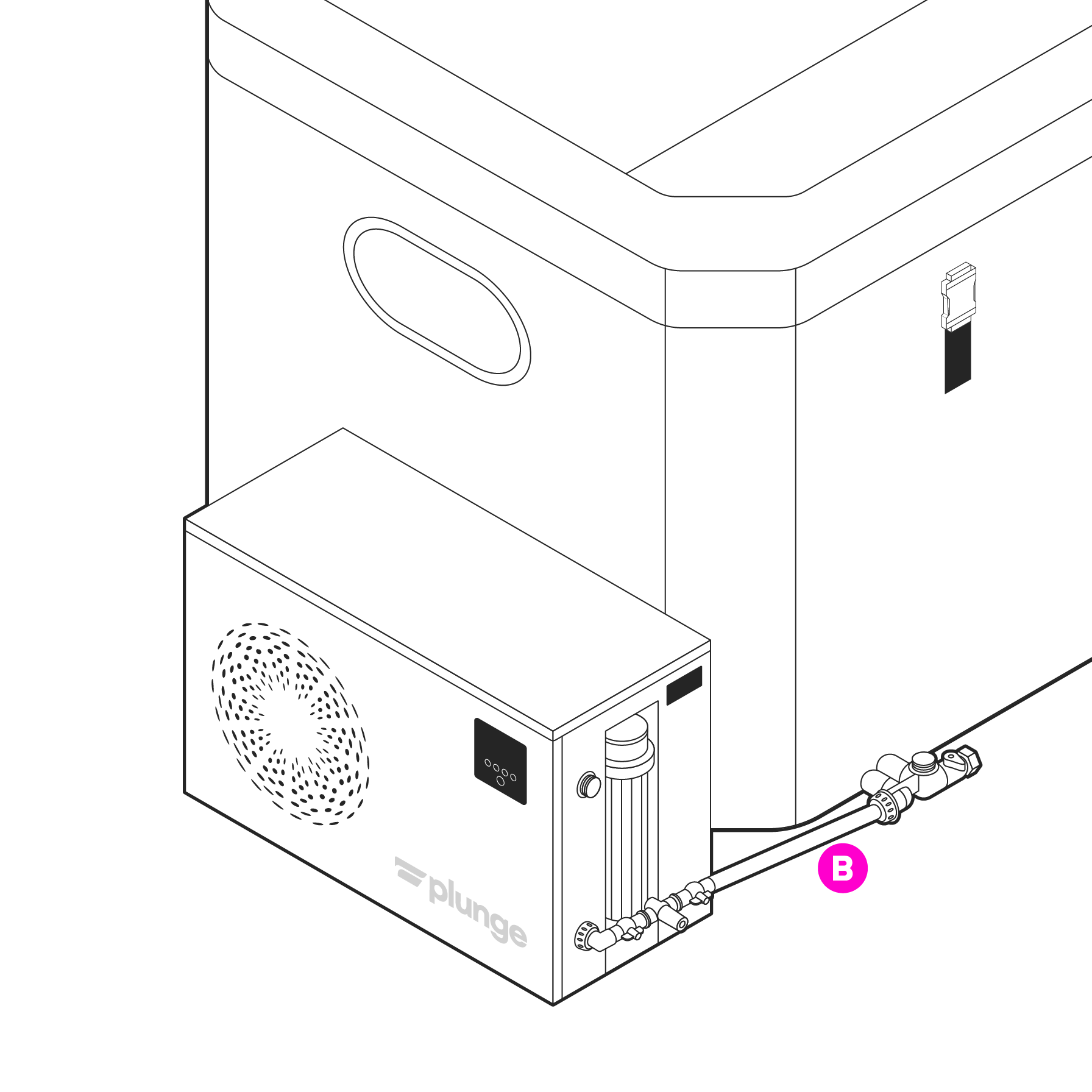

  • Connect it to the Drain Manifold on the tub indicated in the image. Tighten the collar until it is hand-tight and be careful not to cross thread.
  • When you go to connect connection B to the drain port (B) on the chiller check for the black o-ring inside the connection collar and then connect it to the chiller. Hand tighten and be careful not to cross thread.

Plunge Evolve XL

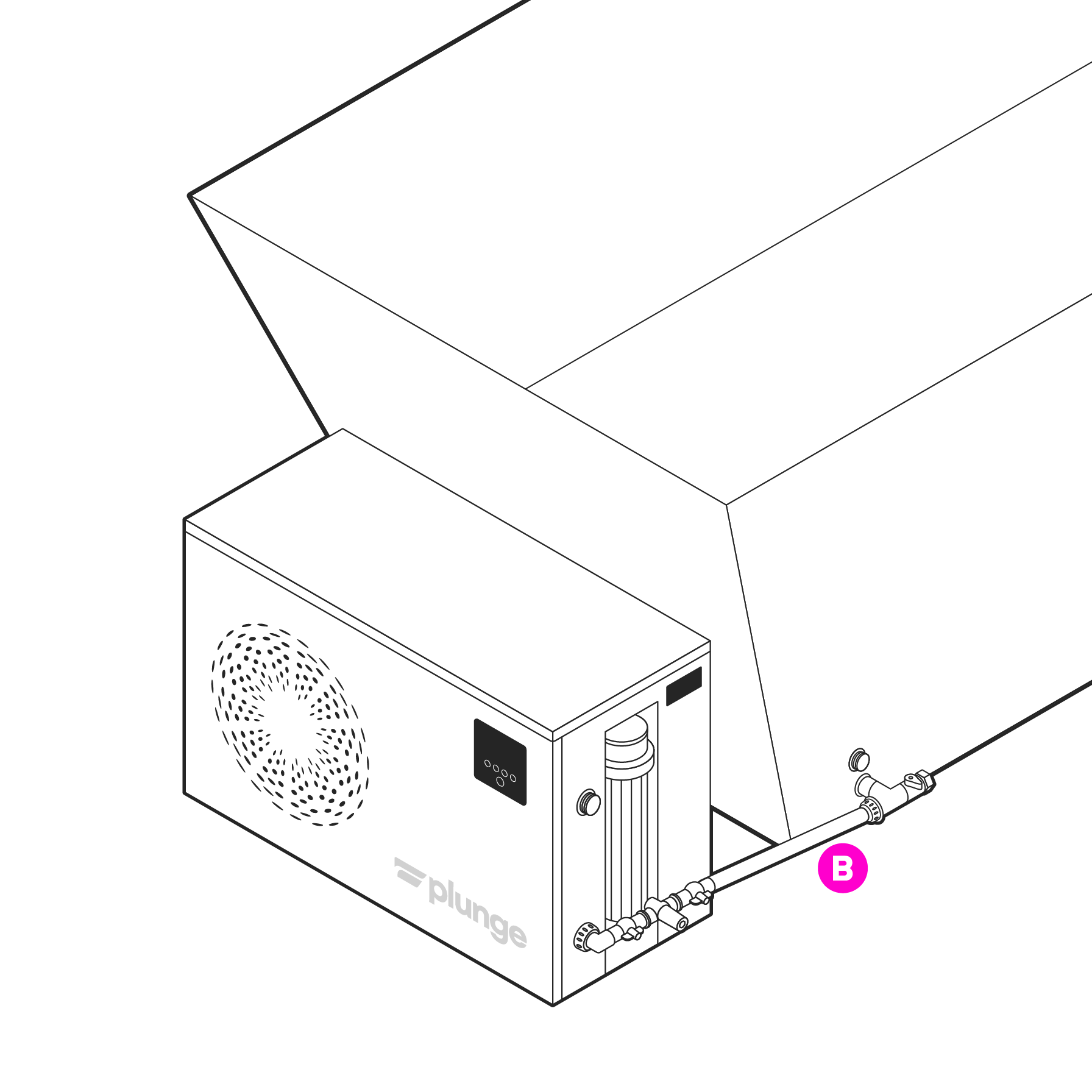

Evolve Standard Chiller-Illo_Step 3- Connecting Connection B - XL- (1).png

Plunge Air

Evolve Standard Chiller-Illo_Step 3- Connecting Connection B - Air.png

Plunge Pod

Step 2-1-1.png

Plunge Pop-Up

Evolve Standard Chiller-Illo_Step 3- Connecting Connection B - Pop Up (1).png

Freeze to Death Cold Plunge

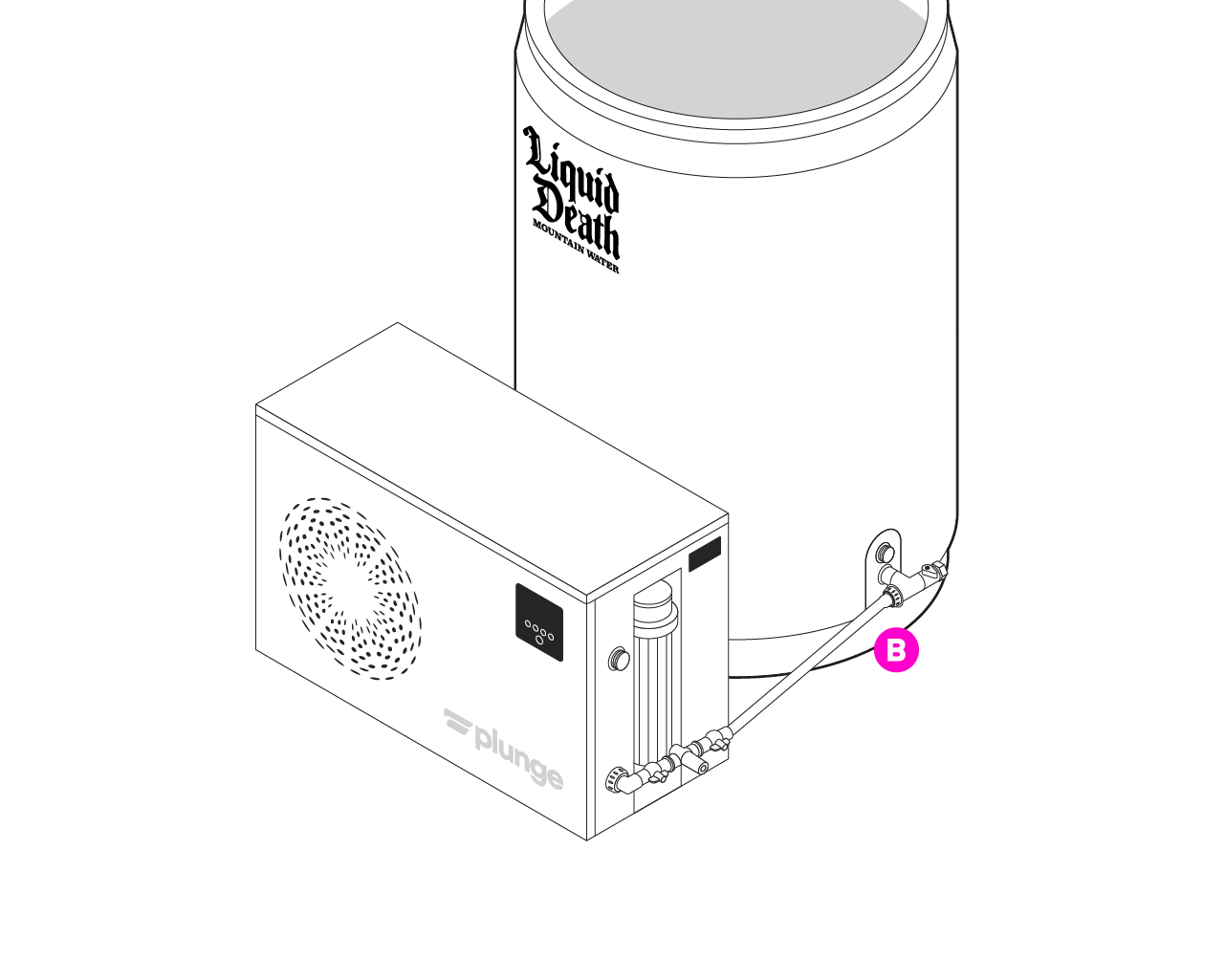

Step 2-5-4.png

Step 4: Connecting Connection A

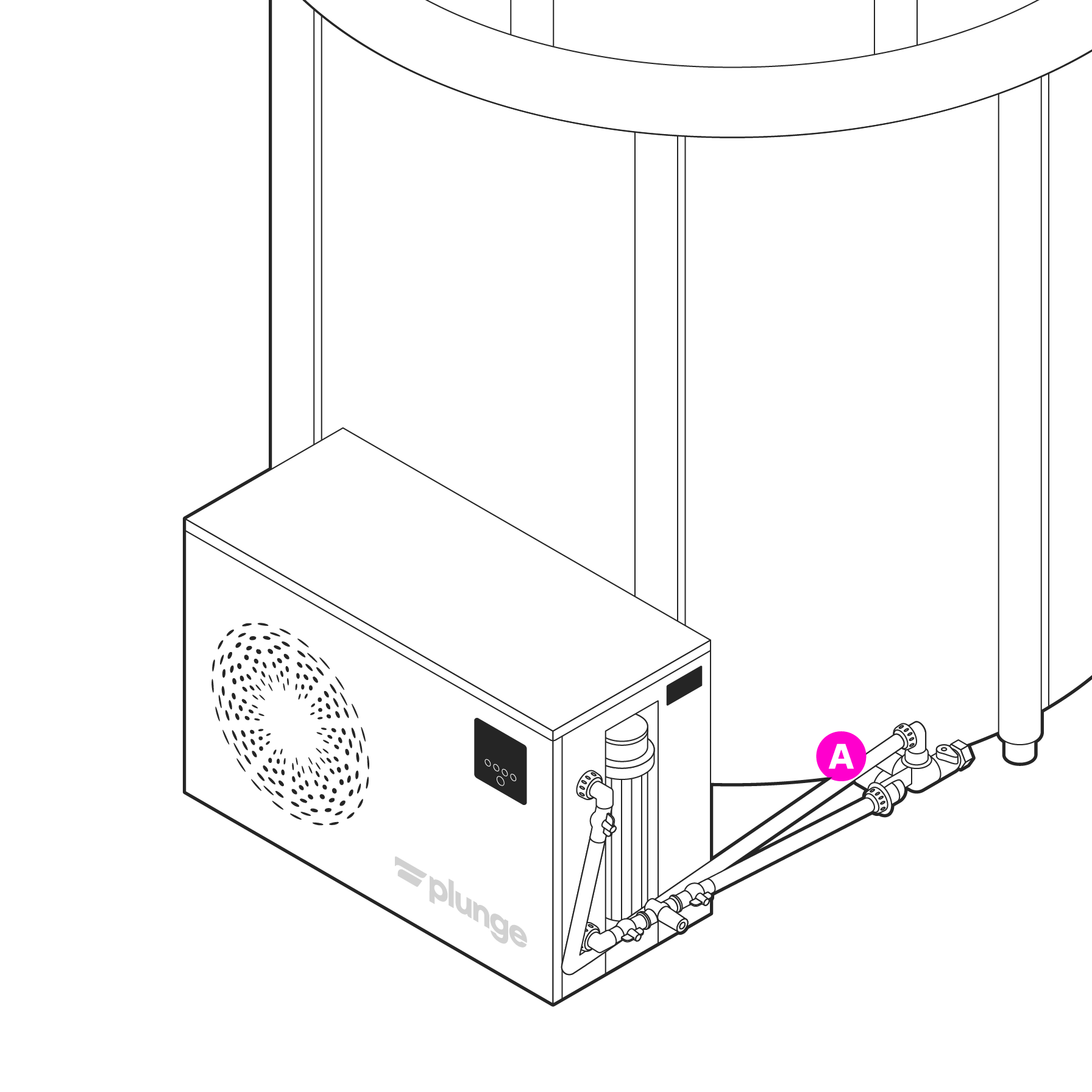

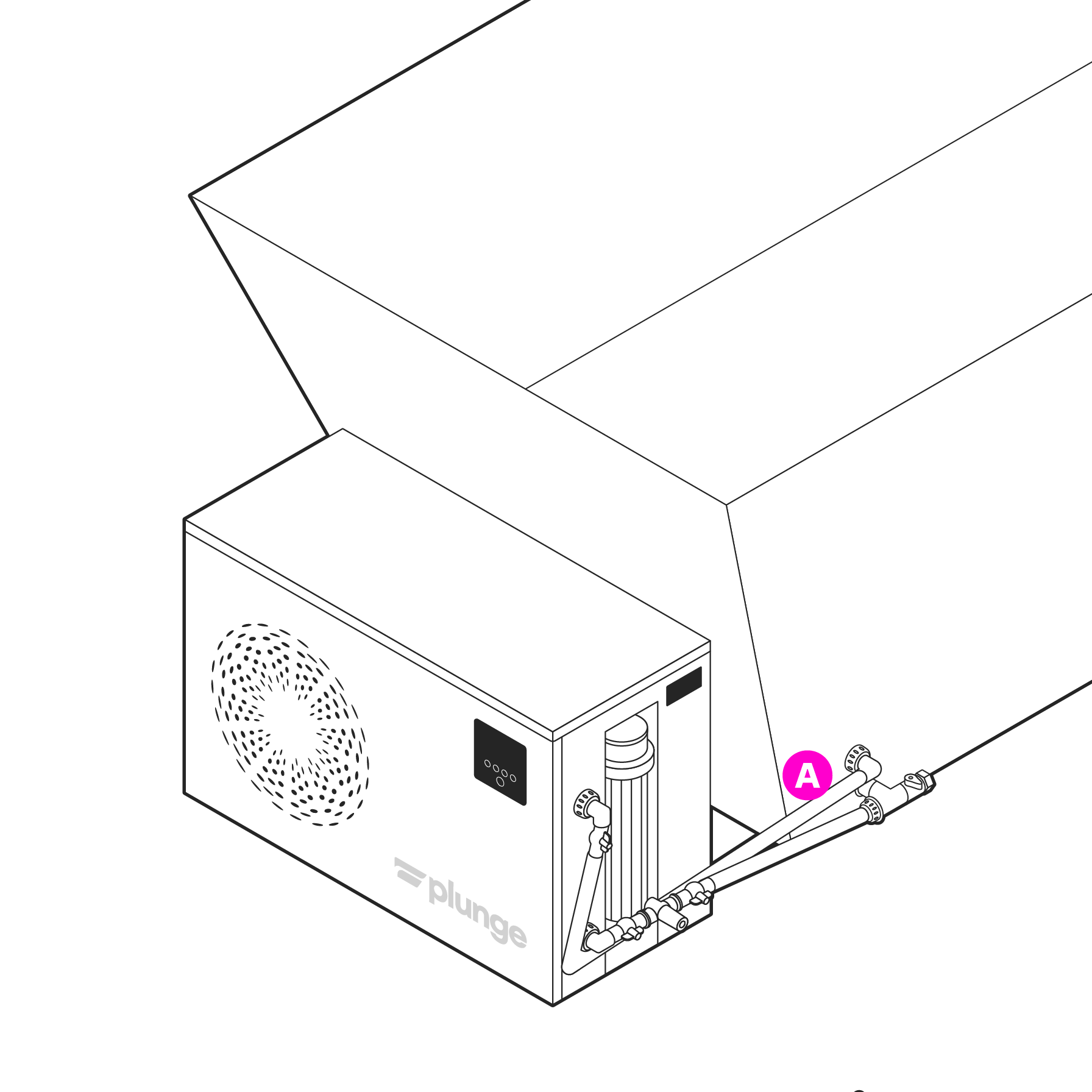

  • Thread connection A underneath connection B and connect connection A to the jet manifold on the tub indicated in the image. Make sure the black o-ring is seating inside the connection collar and tighten the collar until it is hand tight. Be careful not to cross thread the connection collar.
  • Then take the other end and connect it to the chiller to the jet port (A). Make sure there is a black o-ring inside the connection collar and tighten the collar until it is hand tight. Be careful not to cross thread the connection collar.
  • Orientation: Connection A should be going straight down.

Plunge Evolve XL

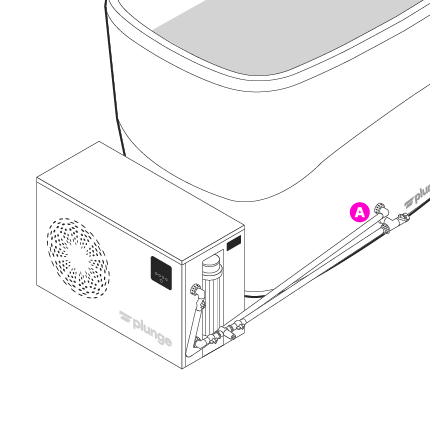

Evolve Standard Chiller-Illo_Step 4- Connecting Connection A - XL.png

Plunge Air

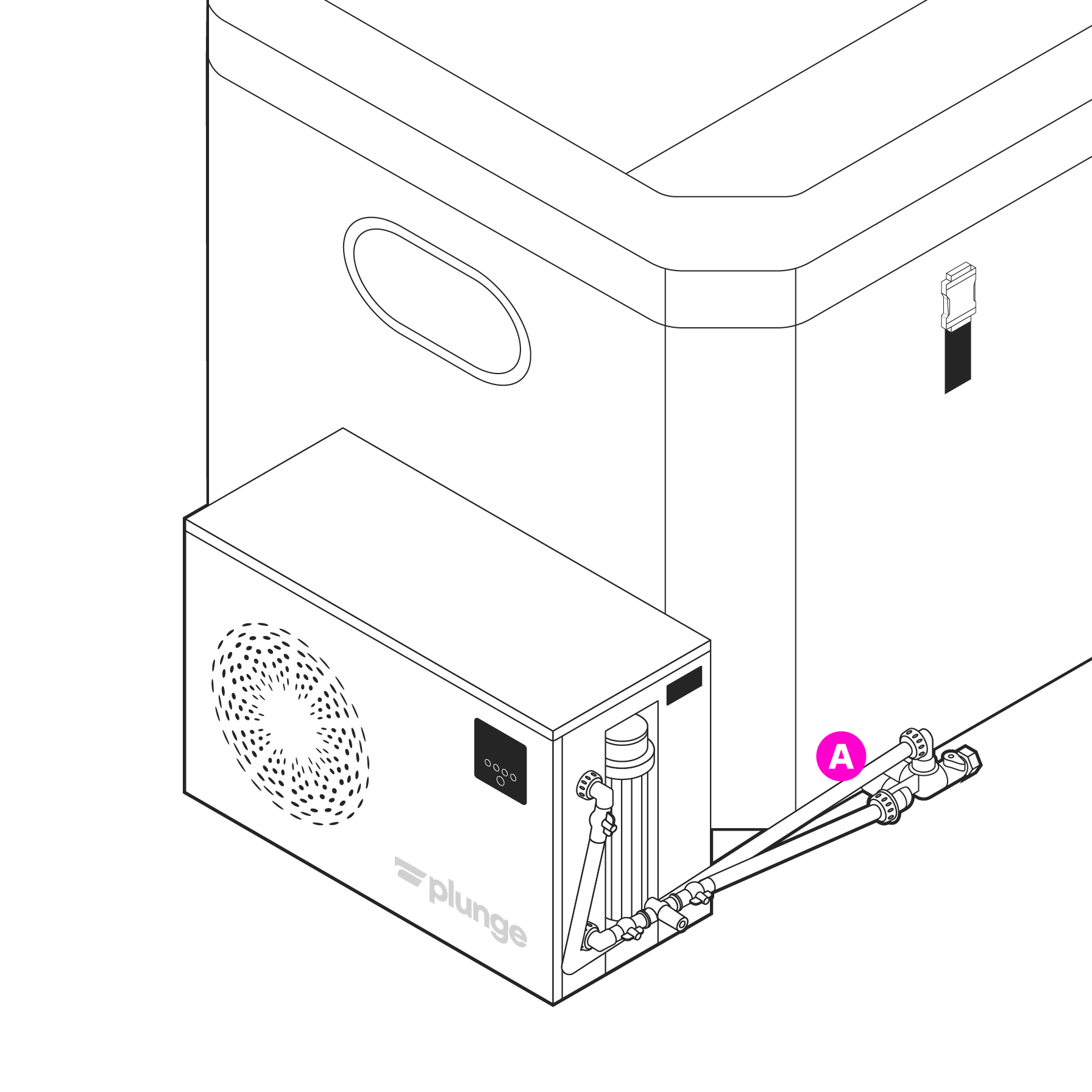

Evolve Standard Chiller-Illo_Step 4- Connecting Connection A - Air.png

Plunge Pod

Step 4-1-1.png

Plunge Pop-Up

Evolve Standard Chiller-Illo_Step 4- Connecting Connection A - Pop Up.png

Freeze to Death Cold Plunge

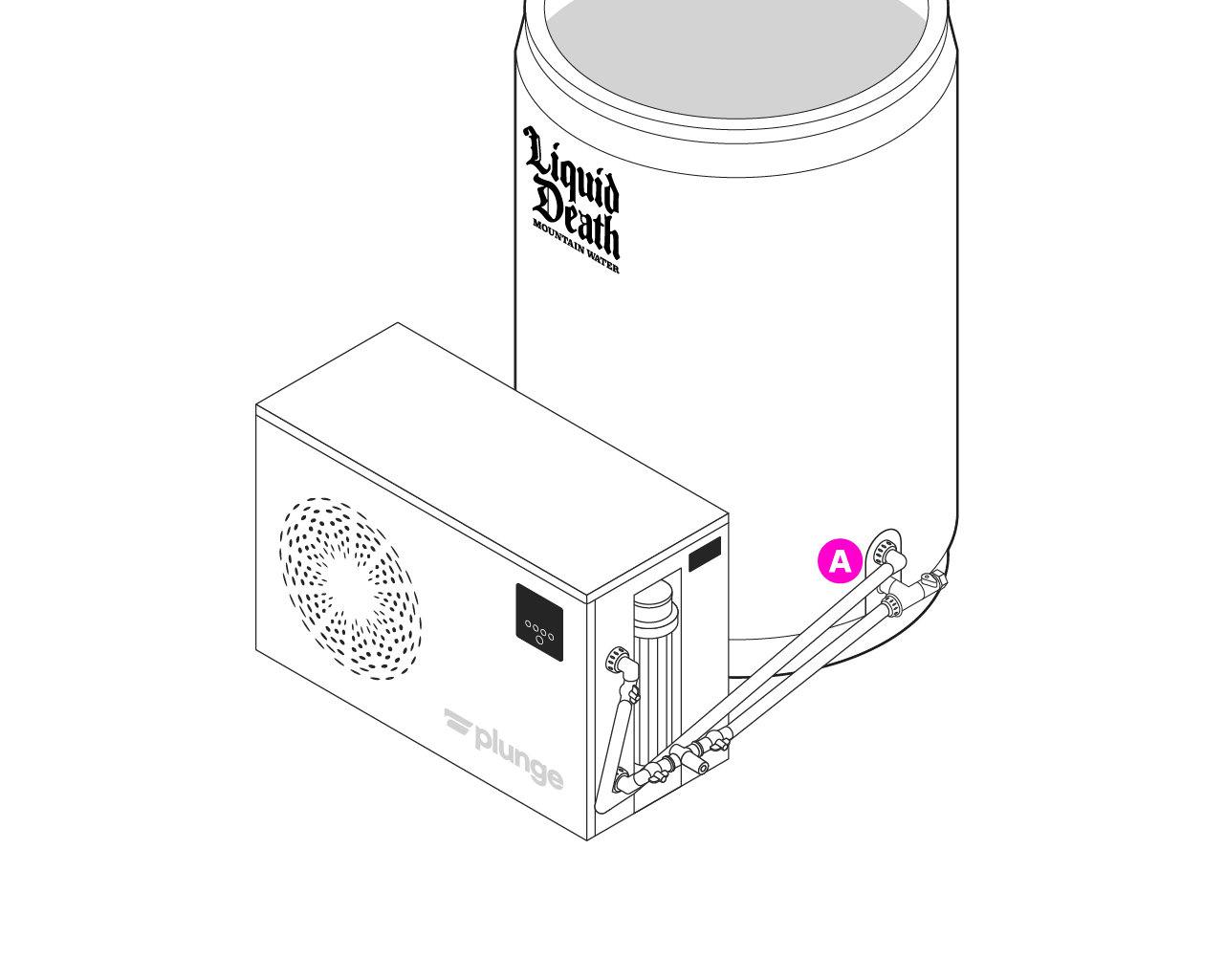

Step 3-5-4.png

Step 5: Fill the Plunge

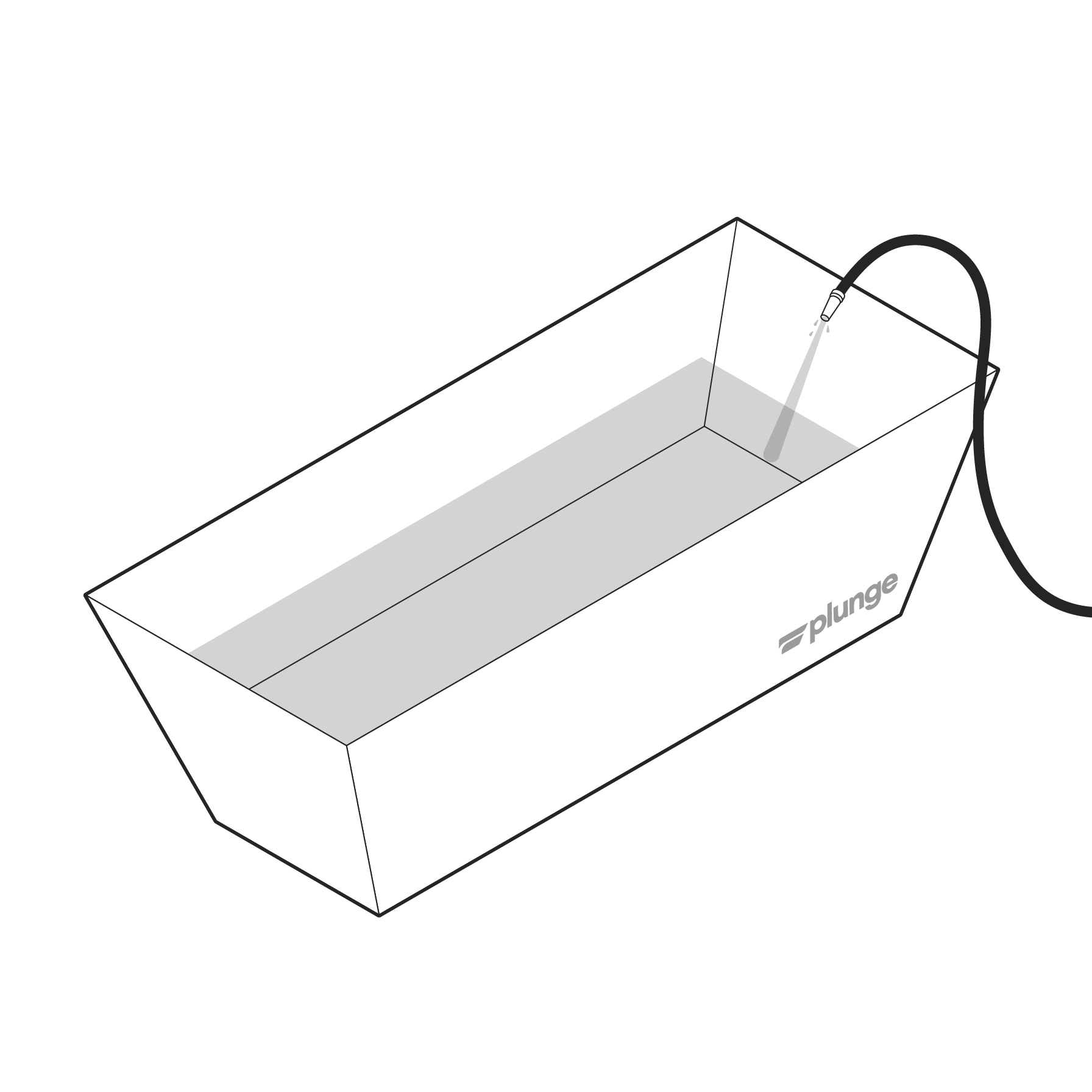

  • Fill the interior of the Plunge with water until it reaches 5 inches from the top.
  • If you have hard water or are on well water with high amounts of calcium, please use an Ion Exchange Filter to fill the tub.
 Evolve Standard Chiller-Illo_Step 5- Fill the Plunge-.png

Step 6: Plug In the Evolve Standard Chiller

  • Check that all colored ball valves are open (parallel to the tub).

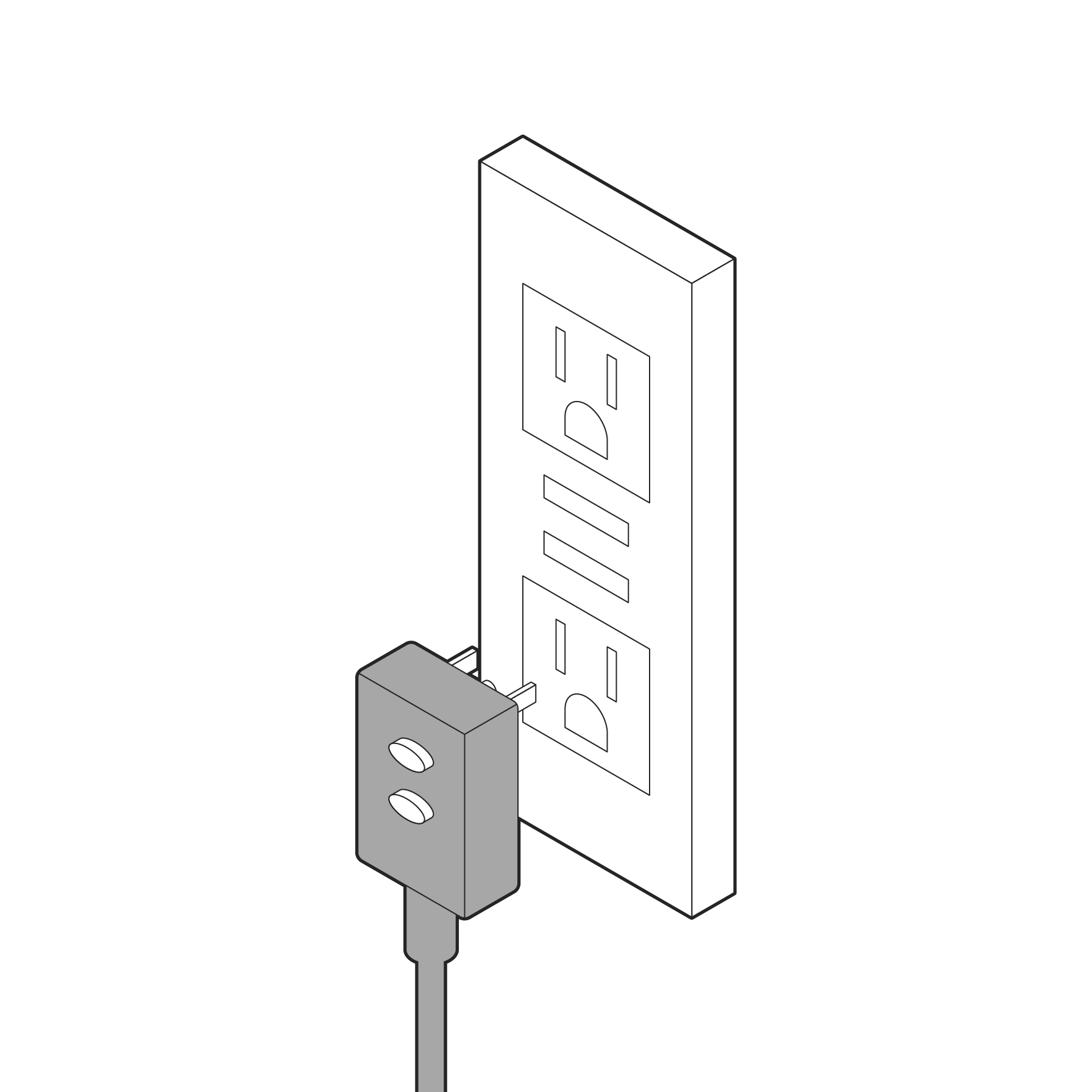

  • Once the tub is full you can plug in your Plunge to a dedicated 15 amp Circuit (120V).

Note: Ensure the Evolve Standard Chiller has rested for at least 20 minutes for the coolant to settle before plugging it into the outlet.

If you plan to use an extension cord, it needs to be 12 gauge to give the Plunge sufficient power up to 25ft. Please follow all NEC requirements.

 Evolve Standard Chiller-Illo_Step 6- Plug In the Evolve Standard Chiller-.png

Step 7: Turning the Plunge On

  • Double check that all the colored ball valves on the chiller connections are open (parallel to the piping).
  • Press the reset button on the GFCI plug and you should see the UI turn on.
  • Hold the lock button on the UI for 5 seconds until you hear a beep and the lock symbol disappears.
  • Press and hold the power button for 3 seconds.
  • You should hear the jets and chiller fan turn on and the chiller will begin priming.
  • If you do not feel water coming out of the jets, please perform an air purge.
 Evolve Standard Chiller-Illo_Step 7 - Turning on the Plunge.png

Step 8: Set Your Temperature

  • Make sure the chiller is in cooling mode (snowflake).
  • You can change the mode by pressing the mode button if you have a unit with the added heater.

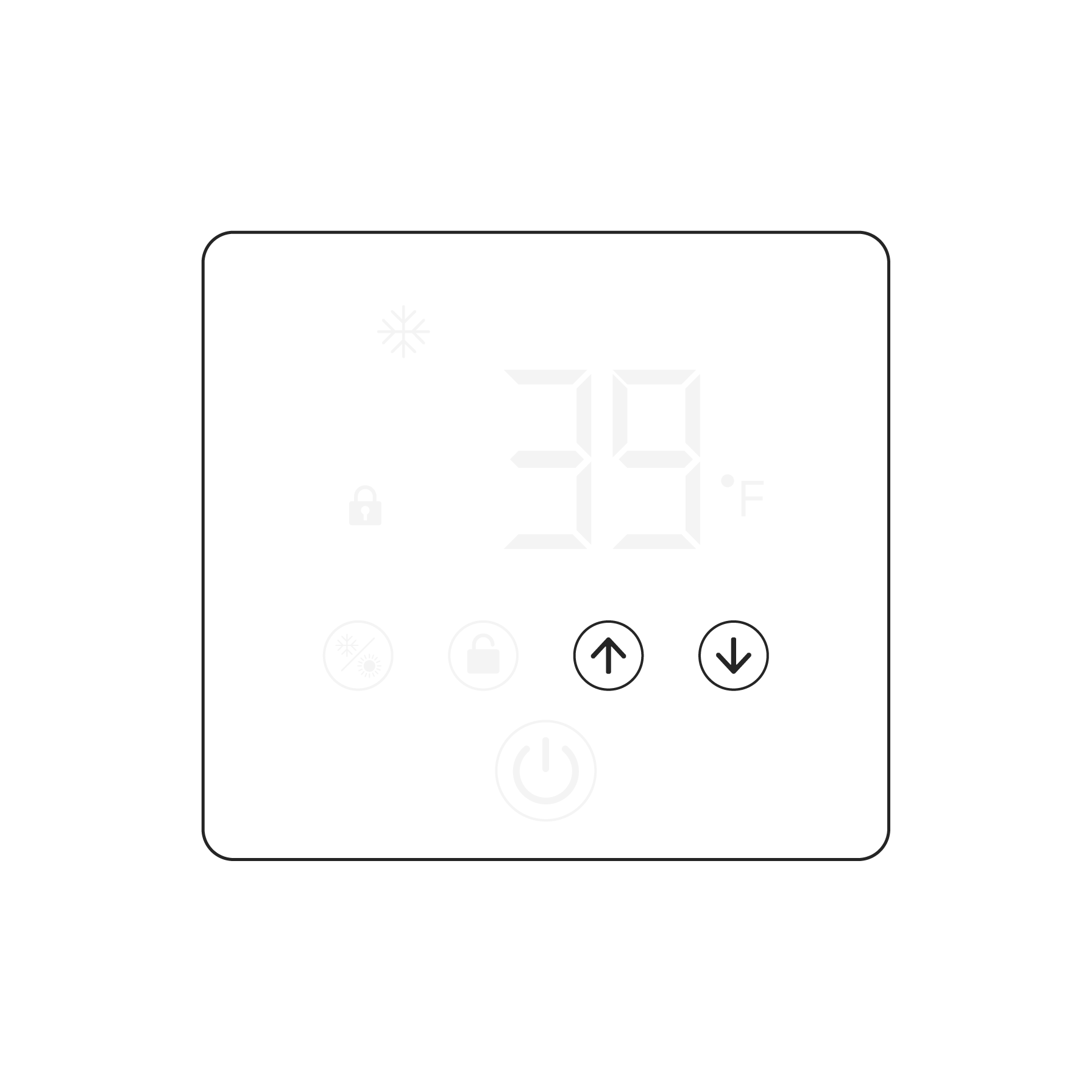

  • Use the up and down arrows to change the set temperature to your desired temperature.
  • Please note: If you have a chiller with an added heater it cannot be used indoors. This unit is outdoors only. There may be significant condensation.
 Evolve Standard Chiller-Illo 1-1_Step 8- Set Your Temperature-.png

Step 9: Water Maintenance

Please make sure to get all the products you need to keep your Plunge sparkling clean and running well long term.

You can purchase the maintenance kit here.

 Evolve Standard Chiller-Illo_Step 9- Water Maintenance -.png
Step 10: Take the Plunge, and get ready to change your life!
 		Happy Plunging!



Download the Plunge App (iOS only)

Installing the app is essential for a few important reasons:

  • Remote Control: Control the temperature of the Plunge from your phone.
  • Metrics Monitoring: We can monitor metrics on your tub to proactively address any potential issues, ensuring your Plunge stays healthy and avoids disruptions.
  • Firmware Updates: Our team is dedicated to ensuring your Plunge stays current with the latest firmware. To keep your unit updated, simply stay connected to the Plunge App to receive the update notifications.
  • Filter Instructions: The app walks you through the step-by-step process for changing your filter, helping maintain your Plunge’s performance.

Please download the Plunge App from the App Store.

Once you've added your product, follow the directions provided in the app.
